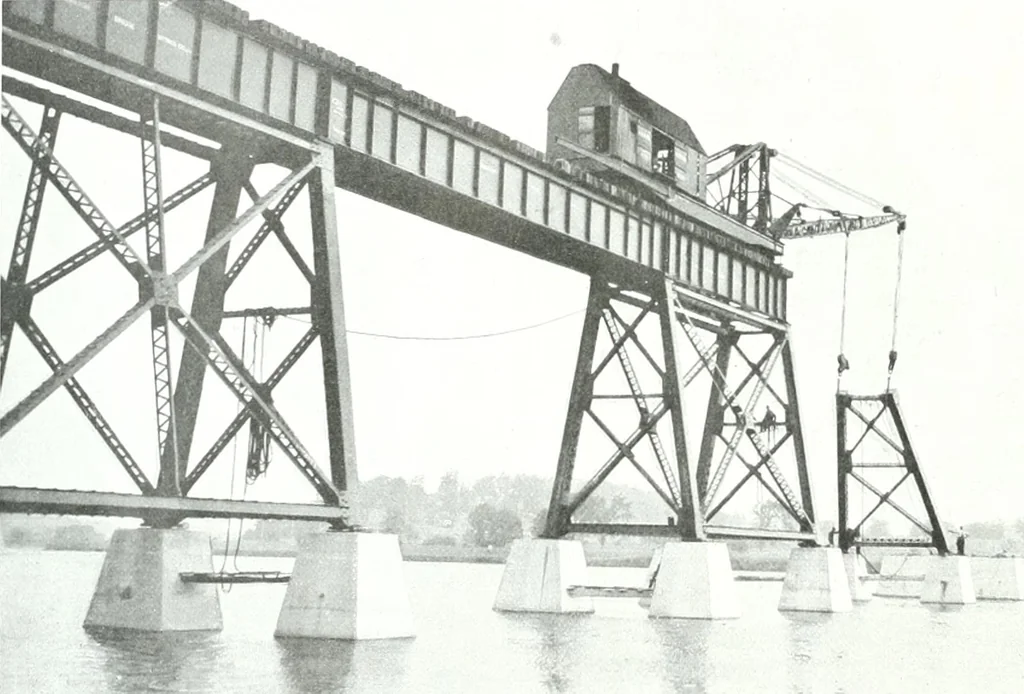

on the loadlines. This beam serves to distribute the load equallybetween the booms. The lower beam is just above the girder andparallel to it. At each end is a shackle which carriestwo double hooks which, in turn, catch the underside of the top flange of the girder. In all, the girderIS lifted at… … ==t^i. -UP-KXI)IXG A DENT BY MEANS OK DERRICK CAR. a pair of buggies after the manner of handling girderswhen unloading The loading frames used in shipping girders, andeach consisting of a timber sill and a timber brace oneach side of the girder leading from the outer end ofthe sill to the under…
