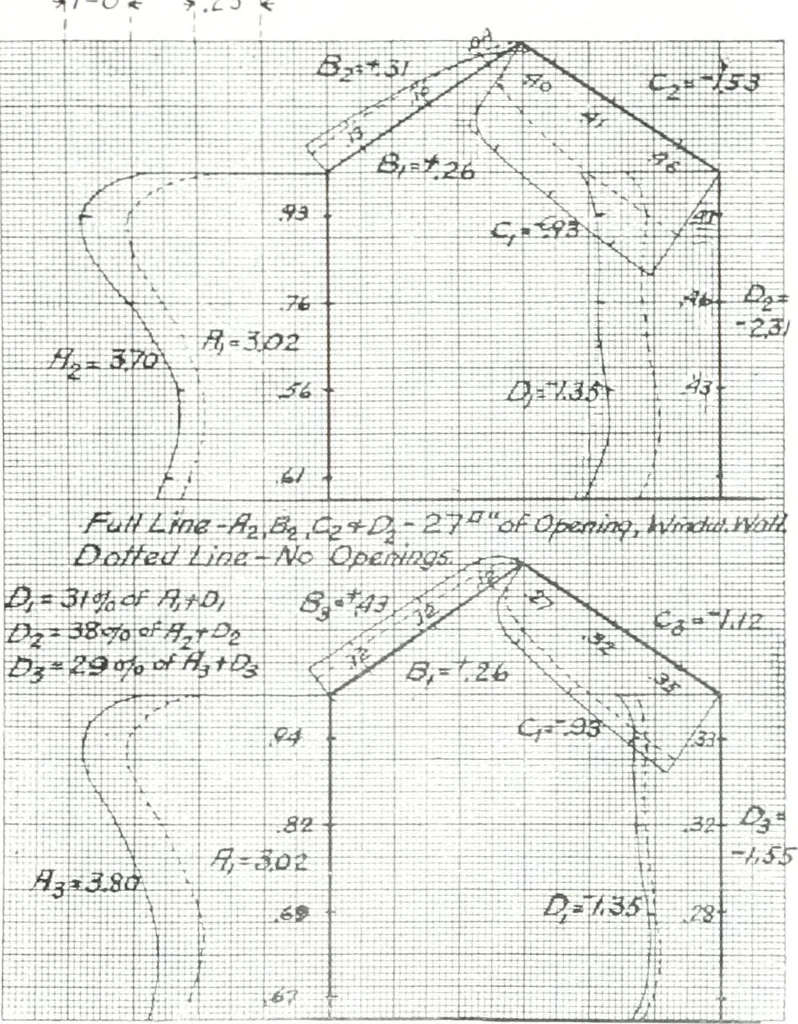

nce upon the relative amounts of thepressures and suctions than the flow over the top.On a thin plate exposed in an air current, the maxi-mum pressure is found on the windward side midwaybetween two edges around which free flow takesplace, and the minimum suction will be found on theleeward side… … Full line. .^.3. B3, C:! and D3—27° of opening, lee wall.Dotted line, no openings. PL.\TE IX. Effect of openings in walls 15 ft. length. 5 ft. height, li pitch. 78 CONSTRUCTION windward pressures to become a maximum, in-creases. The effect of (a) is probably not very large. Butfrom (b) we have the…
