Corporation of Dundee Electricity supply department (1912)
Dundee, Scot. Electricity supply dept. [from old catalog] · [Dundee, J. Leng & co., ltd., printer] · leaf 24

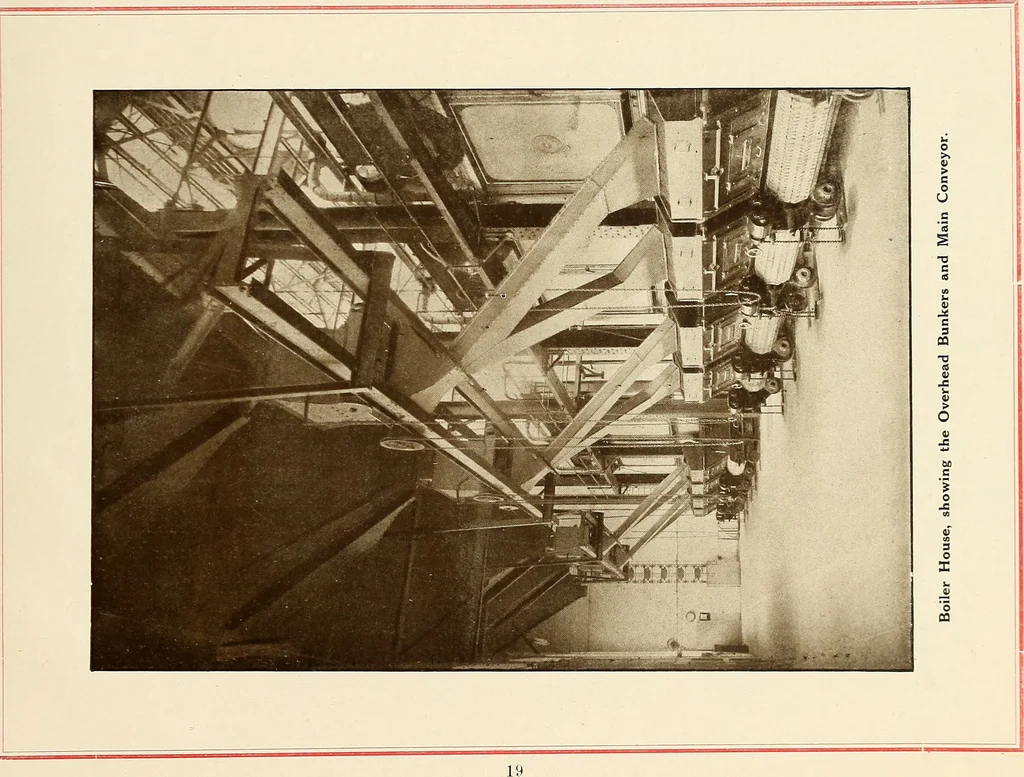

are at present four Babcock & Wilcox water-tube boilers, each having a heatingsurface of 6,182 square feet, and rated to evaporate 20,000 lbs. of water per hour, with a working pressureof 180 lbs. per square inch. The boilers are each fitted with the makers improved superheater of 1,389square… … with a grate area of 120 square feet, and are driven by means of an 8-brake horse power motor, erectedimmediately below the boilers in the ash basement. The motors are controlled from the firing floor. The brickwork settings of the boilers are faced with white enamelled bricks. The chain grates…
Electrical engineering
