Corporation of Dundee Electricity supply department (1912)
Dundee, Scot. Electricity supply dept. [from old catalog] · [Dundee, J. Leng & co., ltd., printer] · leaf 35

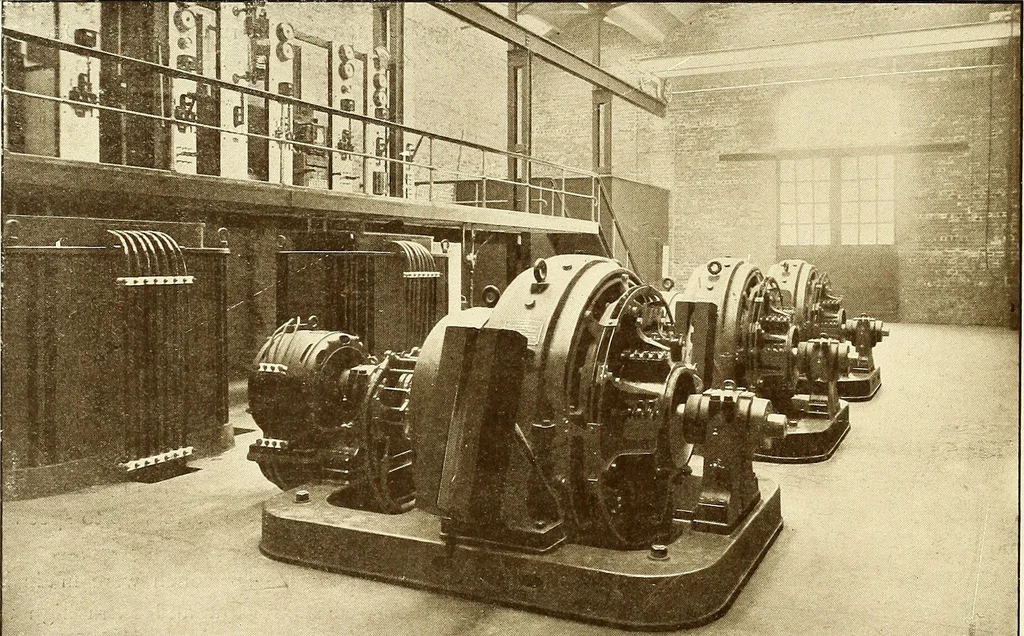

e made by theBritish Westinghouse Company, are placed on the ground floor, while the low and extra high tensionswitchboards are situated on galleries about 8 feet above the floor level. The extra high-tension switchgear is mounted in concrete cells similar to those in the main station.The mechanism… … Clepington Sub-Station, showing Rotary Converters and High-Tension Switch Gear, with their Transformers. 30 tension apparatus is under repair. On both incoming and outgoing extra high tension feeders are staticdischargers, the incoming feeders have also reverse current relays.
