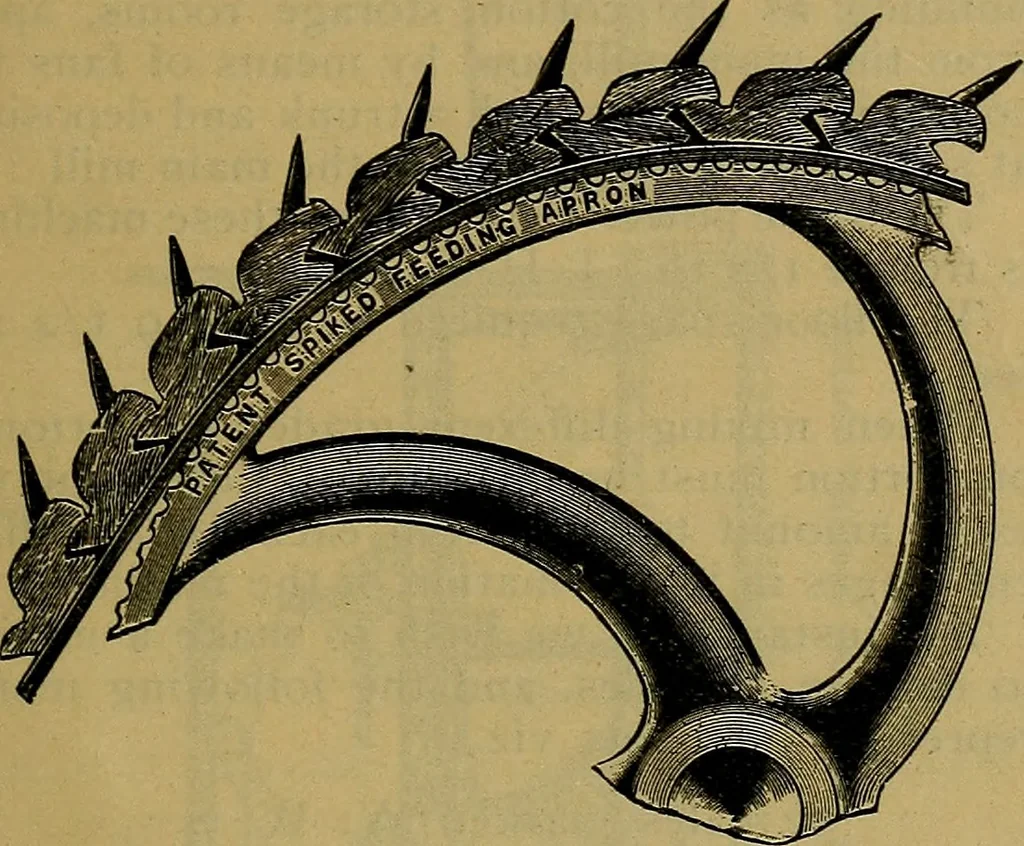

ng roll D. This rollis adjustable, and according to the distance atwhich it is set from the apron, depends theamount of opening that the cotton receives,the greatest amount of opening being obtained COTTON MANUAL 91 when this roll is at its closest point to theapron. An enlarg^ed section of the… … FIG. lO., ENLARGED SECTION OF THE APRON C, SHOWN IN FIG. 9. roll D is removed from the apron by means ofthe beater E, which has 6 leather flaps actingin such a manner that the cotton is struckfrom the spiked apron and deposited upon theapron F, from which it may be delivered toany point desired by…
