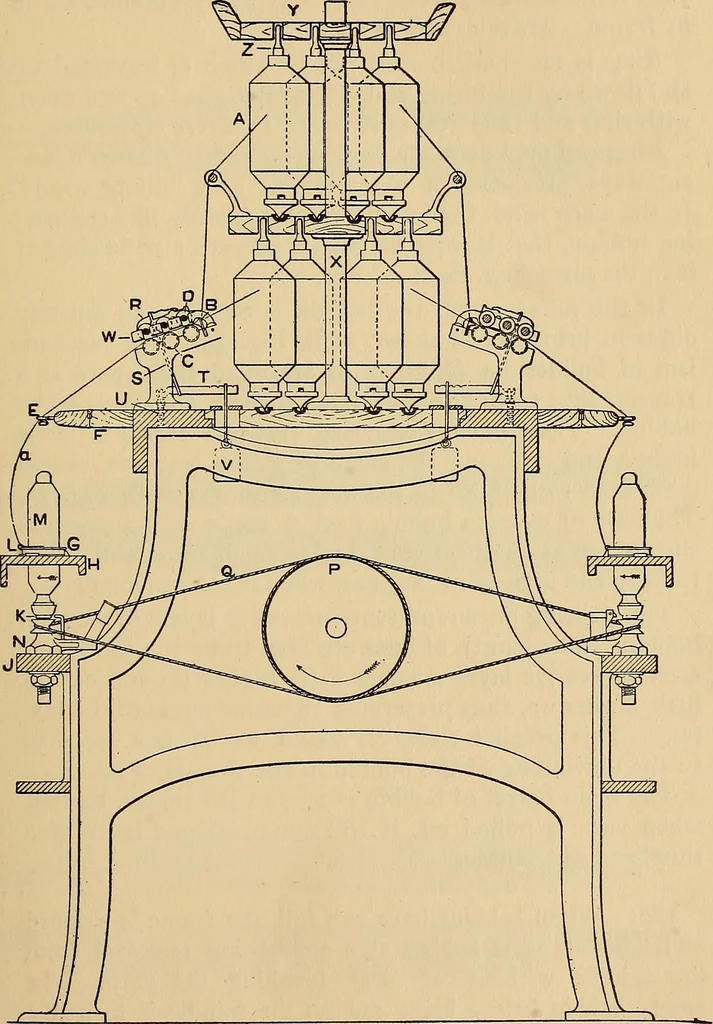

levers. Yarn delivered by front roll passes through threadguide E and through traveler L to bobbin M. Spindle is driven right handed, or clock wise by a roundband made of twisted yarn. The band runs from tincylinder around the whorl of spindle. Bobbin fits tightly on the spindle and revolves with… … Fig. 34. Spinning Frame Section. 178 RING SPINNING. yam is wound on bobbin same way as by bobbin lead infly frame. Traveler acts as a flyer. Ring is fastened to ring rail H which is traversed upand down by the lifting rod. Traveler goes up and downwith ring and thus guides the yarn in layers on…
