Cotton mill processes and calculations. An elementary text book for the use of textile schools and for home study (1899)
Tompkins, Daniel Augustus, 1851-1914 · Charlotte, N.C., The author · leaf 34

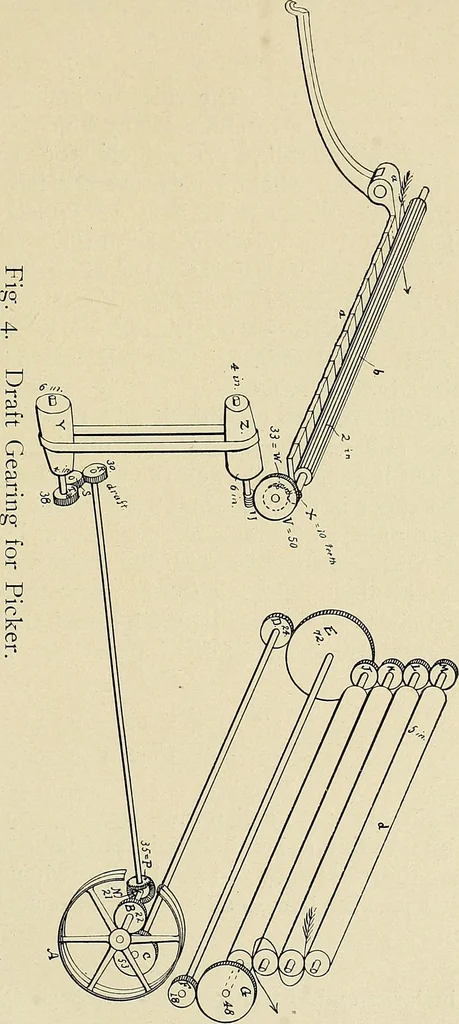

may be readily seen in tlie order inwhich they transmit their power. Only such gears aregiven as have an influence on the draft of the machine;that is, the relation of the stock fed to that delivered.The lap is fed between the evener bars, a, and the feed roll,b. It passes through beater and… … 24 is on a shaft carrying gears, which drive both feed rolland calender rolls. The problem is to find the valueof this train of gears. Draft Rui.E. 19. The rule for lindinp: draft ofa machine of any kind is to con-sider the gear on feed roll or place where stock enters ma-chine as the driver,…
Cotton growing · Cotton manufacture
