Cotton mill processes and calculations. An elementary text book for the use of textile schools and for home study (1899)
Tompkins, Daniel Augustus, 1851-1914 · Charlotte, N.C., The author · leaf 74

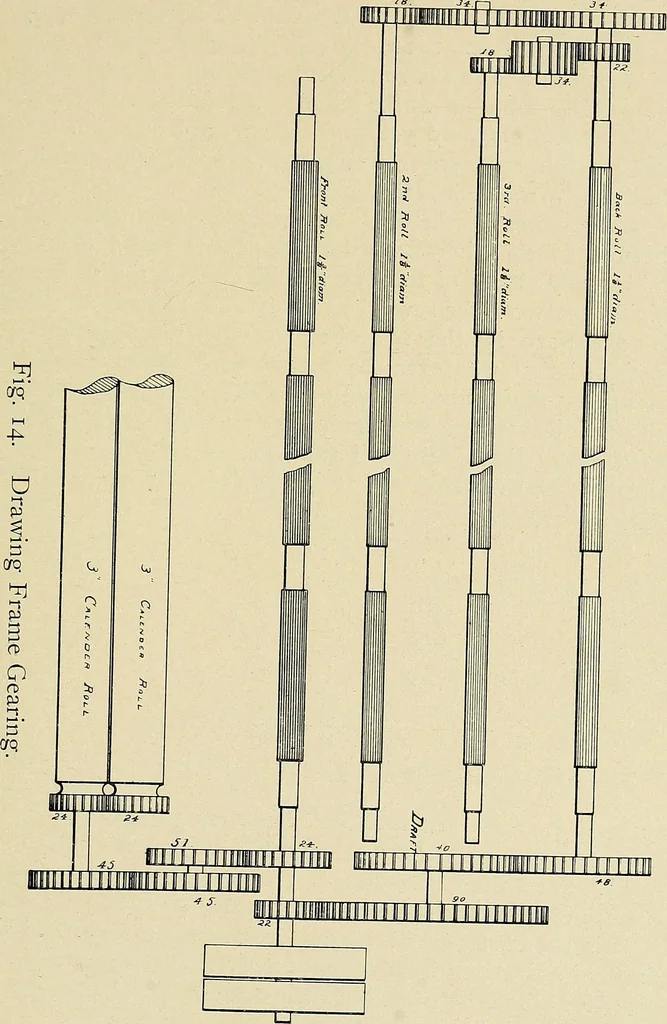

gear, thus: 3 x 48 X 90 X 24 X 45 li X — X 22 X 51 X 45This works out 246.4, which is of course 40 times the for-mer result. This number 246.4 is the constant ordividend for that particular machine. If draft isgiven, and it is required to find the draft gear that wouldproduce this draft, divide… … 64 it would be necessary to use a gear of 41 teeth. Usinggear 41, the exact draft would be 246.4^-41=6.01.Using a gear of 42. the draft would be 246.4-=-42=5.87 The gearing plan shown in Fig. 14, where some of thegears are at one end of rolls, and some at the other, is notuniversally adopted. Some…
Cotton growing · Cotton manufacture
