The cotton weaver's handbook : a practical guide to the construction and costing of cotton fabrics, with studies in design (1908)
Heylin, Henry Brougham, b. 1870 · London : C. Griffin ; Philadelphia : J.B. Lippincott · leaf 301

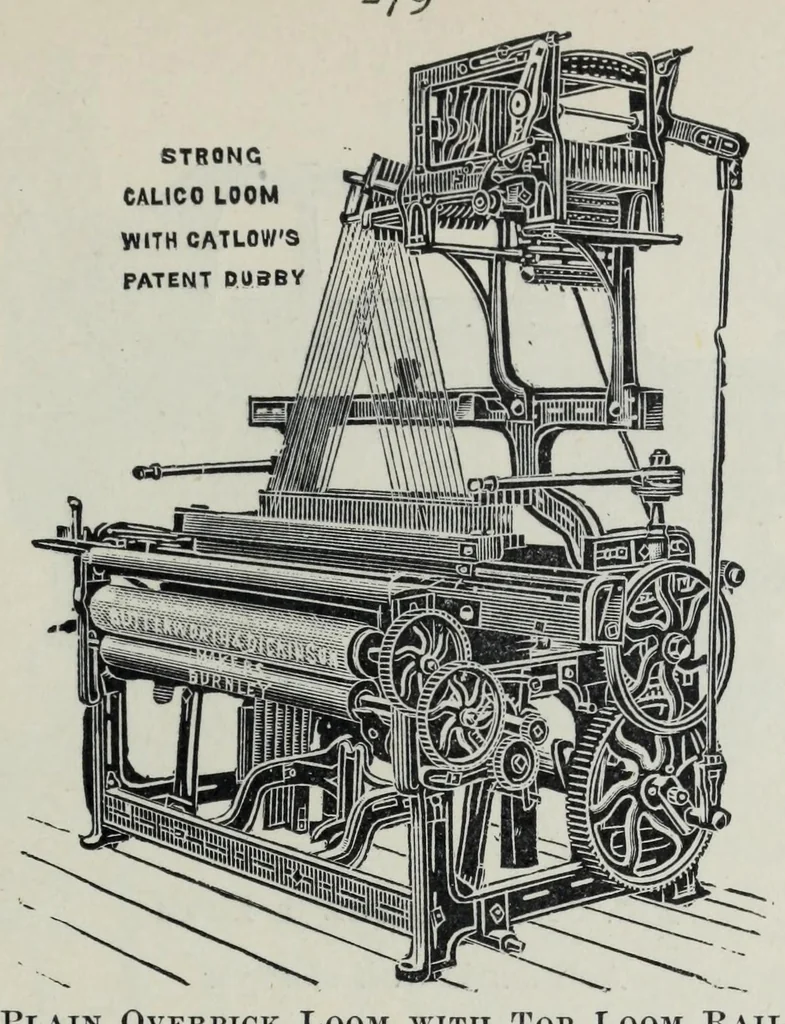

279 … Fig. 347. — Plain Overpick Loom with Top Loom Rail Extended TO Support the Double Lift Dobby Dobby draw-knives are shown as receiving their motion by means of the connecting-rod from the second motion shaft of loom Fig. 348. — Plain Overpick Loom Mounted v.itii a Double Lift Dobby FOR Producing an…
Cotton weaving · Cotton fabrics · Textile design
