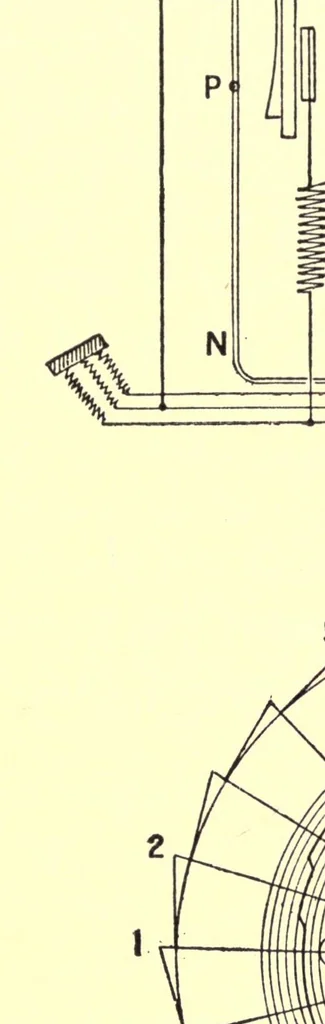

Cotton Weaving and Designing 196 acts upon a lever, MN, centred at P, and the bent arm of the lever N pushes the hook C on to the treadle F when the spot figure is being formed, and when there is no figuring going on the hook is pulled out of the way of the treadle, and so the motion of the rack is… … groove. The first pick in the pattern FIG. 166. floats over two dents or four ends, and therefore the groove at this point must be six spaces wide — four for the pin, and two for the space it has to move through. Before the next movement of the rack, the wheel will have been turned one tooth, and…
