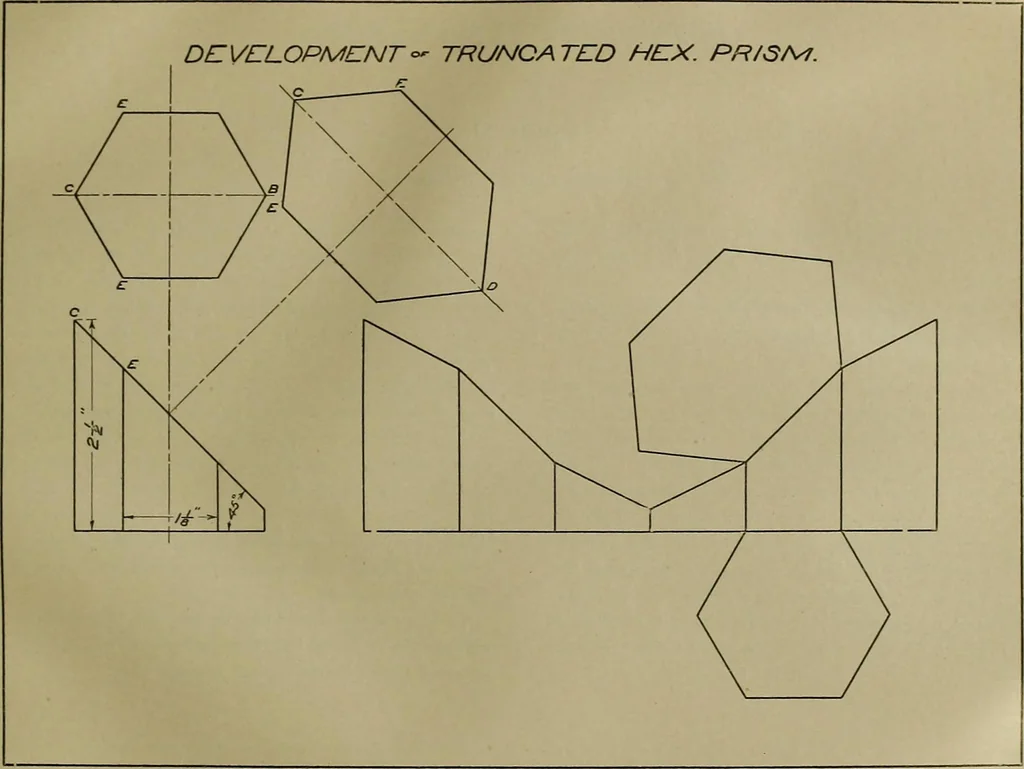

ns of these pointsbeing determined, together with that of C, theremaining points are obtained in a like manner andjoined in their regular order. It now only remains to transfer this true shape ofthe cut surface to the rest of the pattern. Select anyside as a connecting side. Then, as any point… … 32 COURSE IN MECHANICAL DRAWING. SHEET XI. Development of Cylinder. Draw the top and front views of a cylinder to thedimensions given, and develop the side and topsurfaces. As the circumference of a circle is 3.1416 timesthe diameter, the development of the side of thecylinder would be a rectangle…
