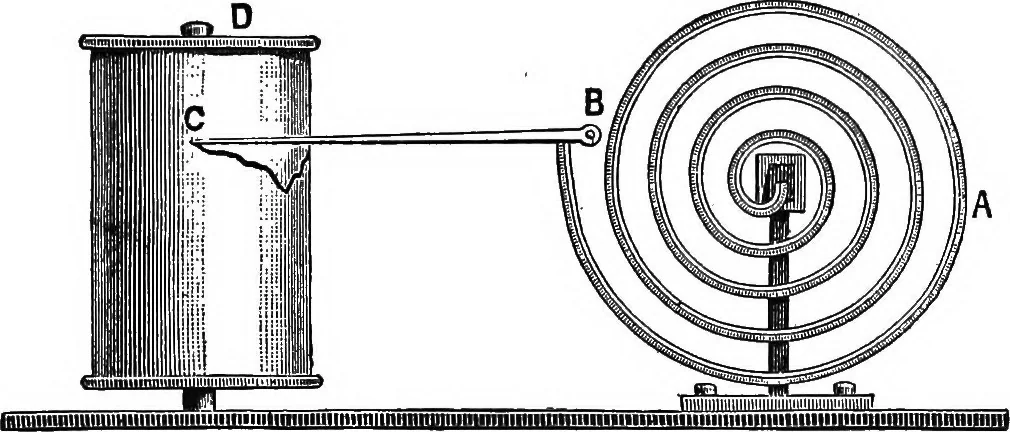

1. The spiral AB is made of two metals, a strip ofbrass on the outside and a strip of steel on the inside. Whenthe temperature rises, the spiral becomes more curved; and whenthe temperature falls, it becomes less curved. The thermometer HEAT IN THE HOME 8S shown here is a recording thermometer. A… … Fig. 6i.—A solid recording thermometer. the temperature falls the decreased curvature lowers the pointC. A pen attached to the point C makes a trace on the paperand thus records the temperature. The ordinary oven thermometers are solid thermometers.In some cases they are made with a spiral of two…
