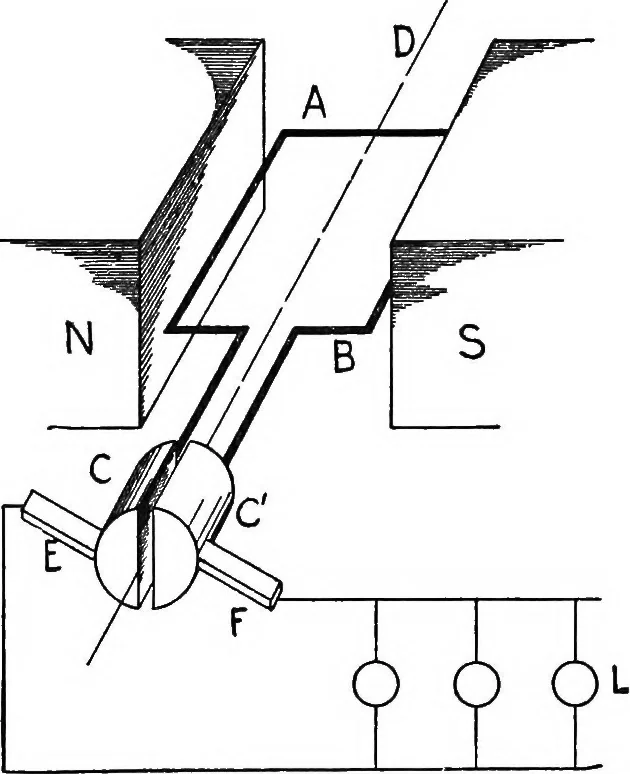

e outer circuit L through these brushes. The current sent through the lights L is alternating becauseit comes out on one brushduring one half revolu-tion, and on the otherduring the other half rev-olution. A dynamo ar-ranged in this way iscalled an alternating-cur-rent dynamo. The… … Fig. 162. — Diagram of a direct-currentdynamo. 226 PHYSICS OF THE HOUSEHOLD the coil of the armature is joined to one section C and theother to the other section C During one half revolution ofthe armature the current comes out on one section, and duringthe other half on the other; but since the…
