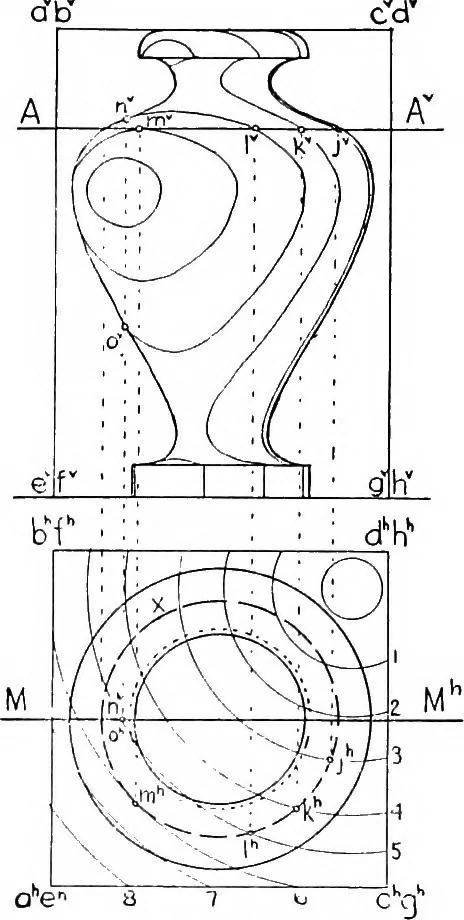

nders formingthe grain, at points j, ]i, I, and m.These points are determined onplan and projected to the eleva-tion. Other cutting planes wouldgive other points. By joining,on the elevation, all such pointswhich result from the same graincylinder, the appearance of thegrain can be established… … Fig. 208 XI, § 192) APPLICATIONS OF CHAPTERS VII-VIII 227 any given line crosses the meridian section, as n and o, can bedetermined exactly by noting on plan the intersection of themeridian plane, M, and the grain cylinder under consideration,No. 5. The point of tangency between the surface circle…
