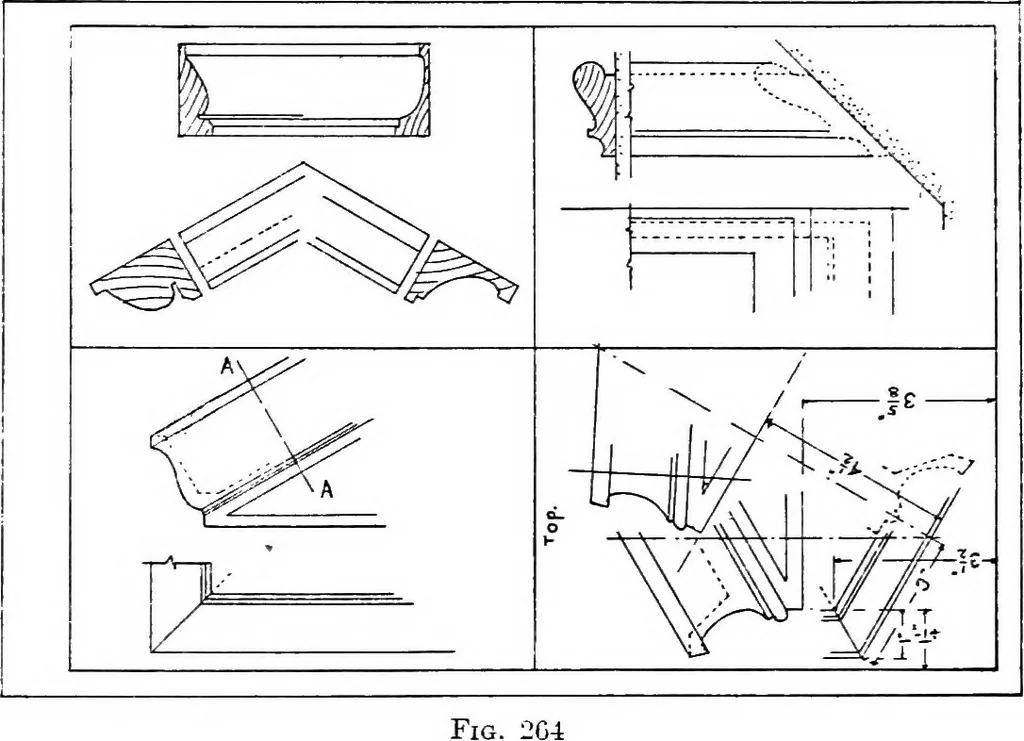

r vault. (6) Assume an arbitrary hne of intersection on plan and find thecorresponding section of the small vaiilt. 3. A spherical dome intersected by two vaults is given. Find theline of intersection both on plan and elevation. 4. A spherical dome and two intersecting vaults. Find the line… … 2. A vertical wall and a ceiling sloping at 45° to H meet in a corner.A picture moulding passes from the vertical wall to the sloping ceihngand miters in the corner on a plane which bisects the angle betweenthe wall and ceiling. Determine the section for the rake mouldingand show a full plan of the…
