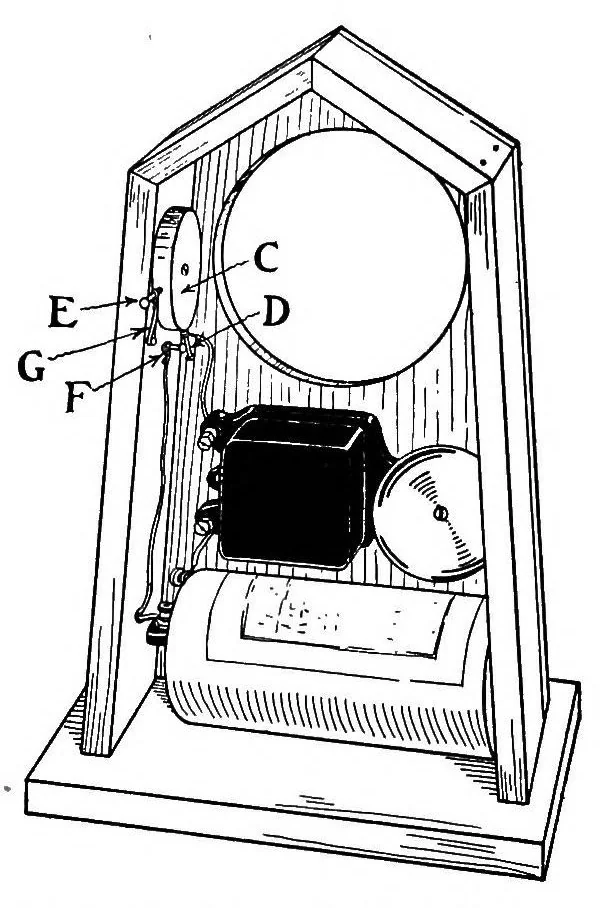

ii6 THE HANDY BOY center (Figs. 215 and 217). Screw a switch, made like the one shown in Fig. 246, page 139, to the right-hand side of the clock-case (Fig. 216), and then connect one binding- … FiG. 216. — Rear View of Completed Fig. 215. — The Clock-Case Interior. Clock. post of this switch with one of the battery binding-posts, and the other switch binding-post with the naU F. Also connect one of the bell binding-posts with nail D, and the other binding-post with the second binding-post…
