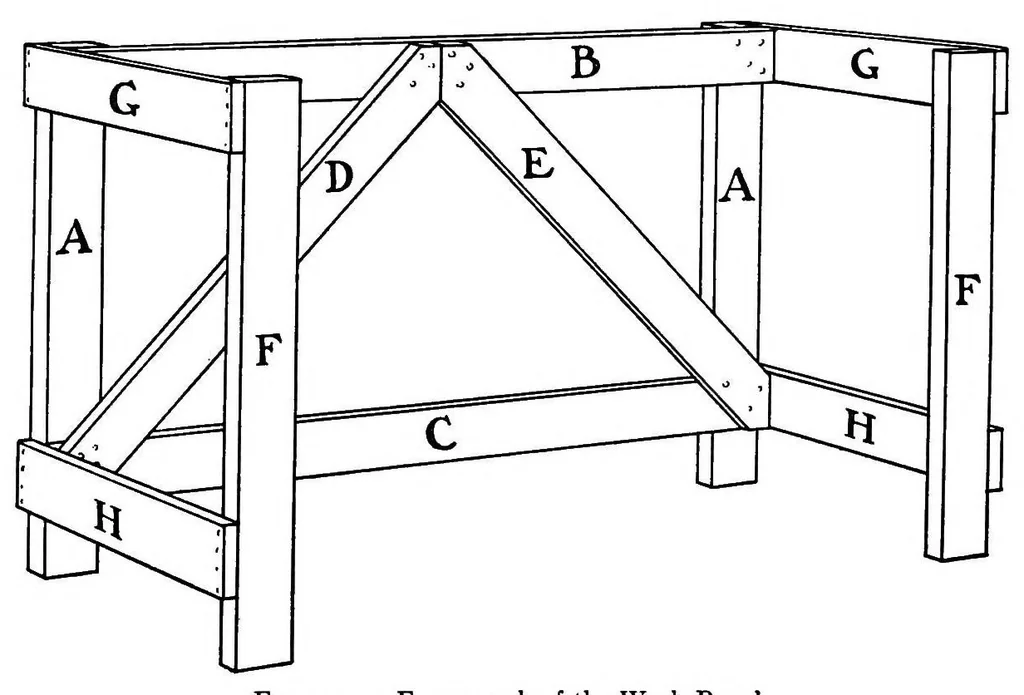

HANDY BOY'S WORK-BENCH AND TOOL - CHEST 7,3 The Framework. Cut the four legs {A and F, Fig. 31) 2 feet 6 inches long, the rails B and C 4 feet long, and rails iG and H 23 inches long. Then place the legs A upon the floor, flatwise, and connect them with rails B and C, fasten- ing B at the tops as… … Fig. 31. — Framework of the Work-Bench. comers, in order that the completed bench may be square; so, before nailing these pieces together, it is essential to test all foxir comers of the frame. The diagonal braces D and E should then be cut and fastened to rails B and C in the manner shown. Trim…
