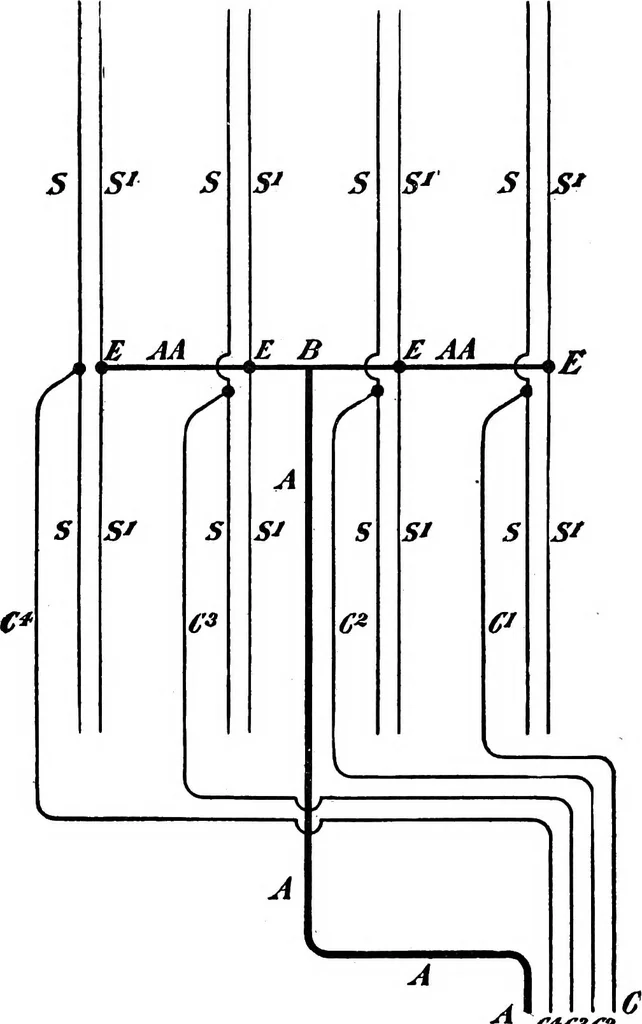

circuit,is the same as explained in Fig. 5. Fig. 7 is somewhat similar to Figs. 4 and 5,except in this case two separate feeders are pro-vided for the purpose of equalizing the pressure,and forming two.separate circuits of each, row oflamps, each circuit being independent of the other,on the same… … C*C3(?i Fig. 5.—Plans of DisTRiBUTioiir. HOW TO WIRE BUIIiDINOS. 106 ? 444 ? e* c^ EAA f A CS 444 r c i£ C Fig 6.—Plans of Distribution. 106 HOW TO WIRE BUILDINGS. method of throwing in or out of circuit by switchesis similar to that as described in Fig. 4. Fig. 8 represents a system of…
