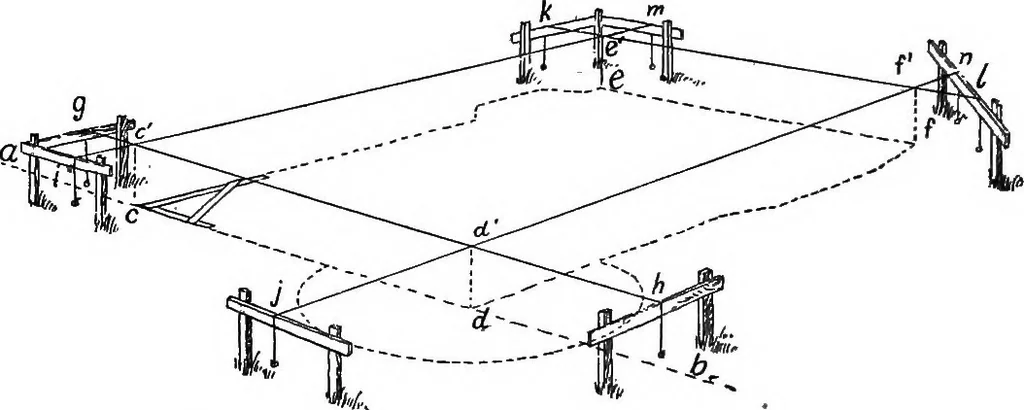

•-, (B.) Having located the line of the front of the house{ah, Fig. 1), decide upon the relation of the corner c tothe nearest side of the lot. With cd as basis, lay out thegreatest rectangle possible to obtain from the plan of thehouse, as shown by the corners c, d, e, f. In order to obtain the… … Fig. 2, — Laying out the Foundation. Glossary) should be erected as shown in Fig. 2, not lessthan five feet from the sides of the house at the cornerswhich the approximate measurements have located. Threeforms of batter boards are shown, the form at c and e beinggenerally used, as it is more rigid…
