Advanced theory of electricity and magnetism; A text-book for colleges and technical schools (1915)
Franklin, William S. (William Suddards), 1863-1930, MacNutt, Barry, 1878-1936. joint author · New York, Macmillan · leaf 137

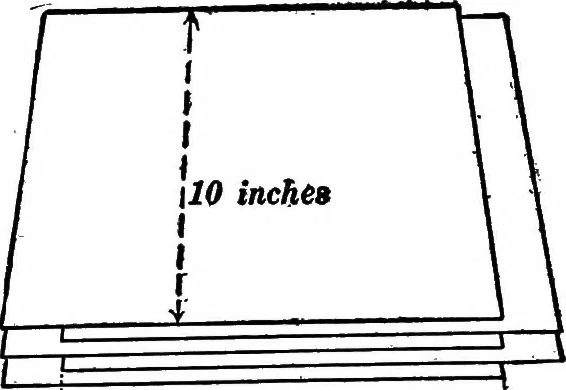

n microfarads. The approximate dimensionsof a one-microfarad condenserare as follows: 501 sheets of tinfoil separated by sheets of para-ffined paper 0.02 inch in thick-ness, the overlapping portionsof the sheets of tin foil being 10inches by 10 inches, as shown inFig. 84. Two pieces of metal of any… … ______ J.OJnches_ _,_ J Fig. 84. ELECTRIC CHARGE AND THE CONDENSER. 127 78. Inductivity of a dielectric.—The capacity of a condenserdepends upon the size of the plates, upon the thickness of thedielectric and upon the nature of the dielectric. The dependenceof the capacity of the condenser upon the…
