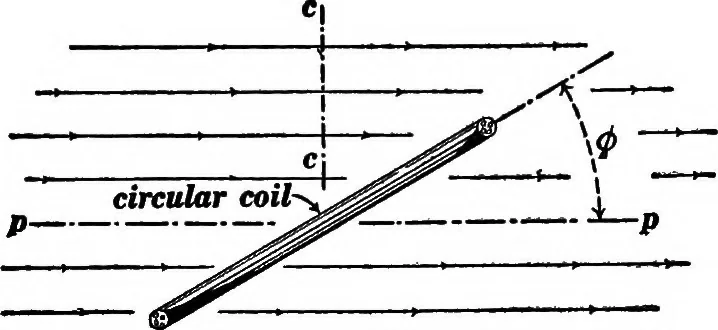

Fig. 26. Let A0 be the angle in radians which is subtended by Al; thenAl = r-A9, and equation (2) becomes: AT = ZIHr2s\tfO-Ad (3) THE MAGNETIC MEASUREMENT OF CURRENT.Therefore X 9=2,rsin2 e -dd. =0 or T = ^ZIH 31 (4) (5) Note.—When the field H is at right angles to the axis aboutwhich the torque T… … Fig. 27.Top view of suspended coil. the coil as shown in Fig. 27, then H cos <j> is the component ofthe field which lies in the 7 plane of the coil, and substi-tuting H cos 0 for H inequations (1) or (5) we getthe correct expression forT for the case shown inFig. 27. 21. The Siemens…
