Elementary treatise on electricity and magnetism (1903)
Foster, George Carey, 1835-1919, Joubert, Jules François, 1834-1910. Traité élémentaire d'électricité, Porter, Alfred William, 1863- joint author · London, New York, Longmans, Green, and co. · leaf 176

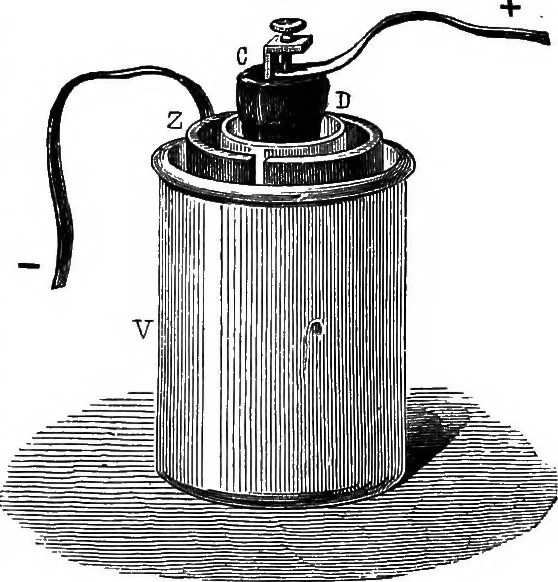

nganese in small fragments. The electromotive force ofa bichromate cell is about 2 volts, but it has the disadvan-tage that the liquid acts on the zinc even when no current ispassing ; it must not, therefore, be left to stand with the plates inthe liquid. A Leclanchd cell has an electromotive force… … Fig. 101. 154 GALVANIC OR VOLTAIC BATTERY [109 In all the cells mentioned the zinc terminal is negative. Fig. 102 represents the mode of connecting a number of cells S^ Fig. 102. to form a battery, and shows a conducting wire joined to oppositeterminals of the first and last cells. CHAPTER…
Electricity · Magnetism
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
