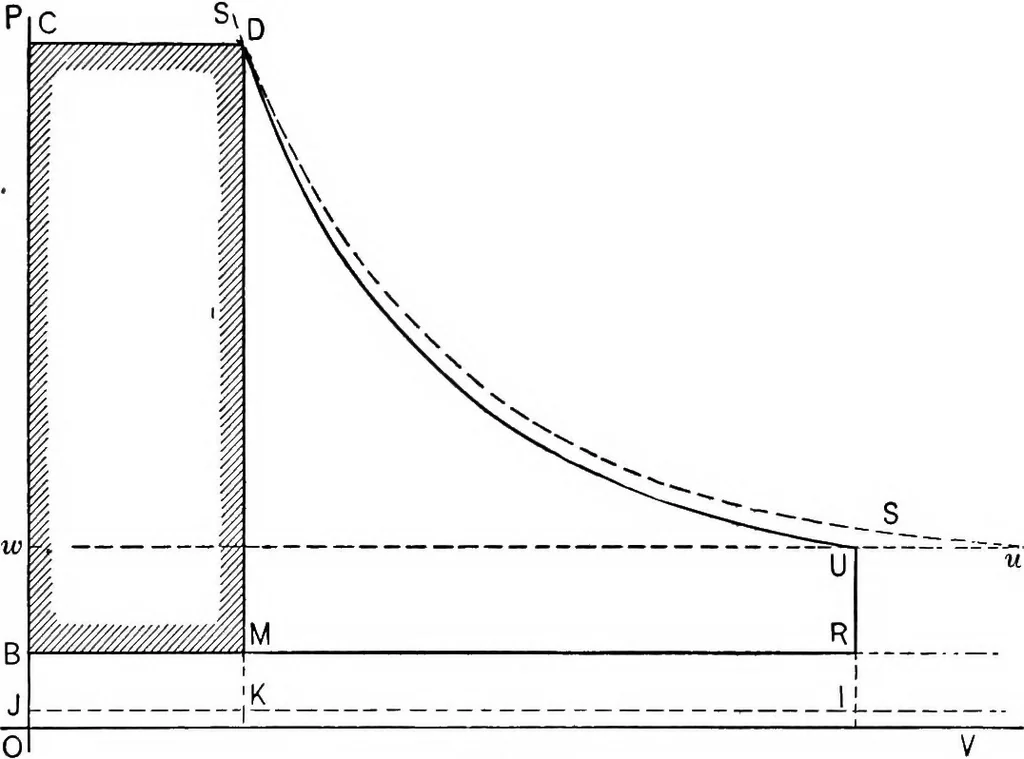

, but ther-modynamically the abstraction of heat by the condenser THE STEAM-ENGINE CYCLE 103 may better be imagined as taking place entirely within thecylinder. The heat is now not free to fall naturally down the adia-batic DU, but is diverted artificially by the limitations ofthe case into… … Fig. 12 equation in the AT-diagram ; in the P F-diagram its equa-tion is V= a constant. But the AT-curve may be foundby determining in dividual points by the help of Equation 21.In this case it is the volumes which are known and the othervariables which are to be found. Thus, at M the volumeis the…
