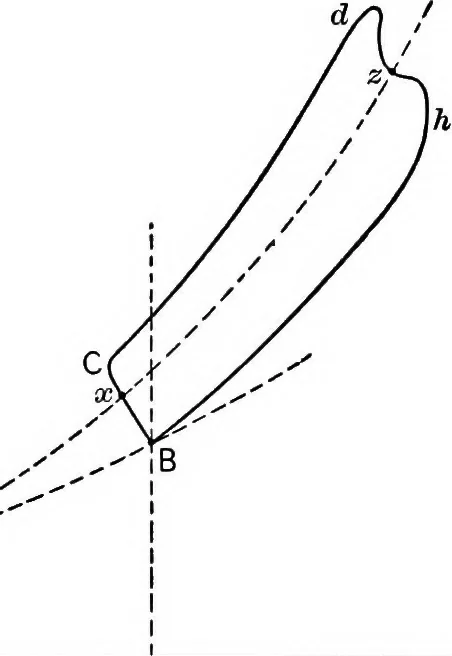

ee Trans. Brit.Inst. M. E., 1901.) THE OTTO GAS-ENGINE 279 the clearance. Also draw the zero-axis of pressure, O V.Then erect any number of ordinates through any desiredpoints whatever. It will save work to carry these ordi-nates completely across both curves. Then in order tolocate upon Fig. 48… … Fig. 48 such process actually took place or not does not affect themathematical argument. From y, Fig. 48, lay off the con-stant-volume isomorphic yxz. This must correspond inthe same way to the line yxz of Fig. 49, and upon it maybe located both x and 2. The temperatures and entropies of the…
