Higbee, F. G · New York, John Wiley & Sons · leaf 113

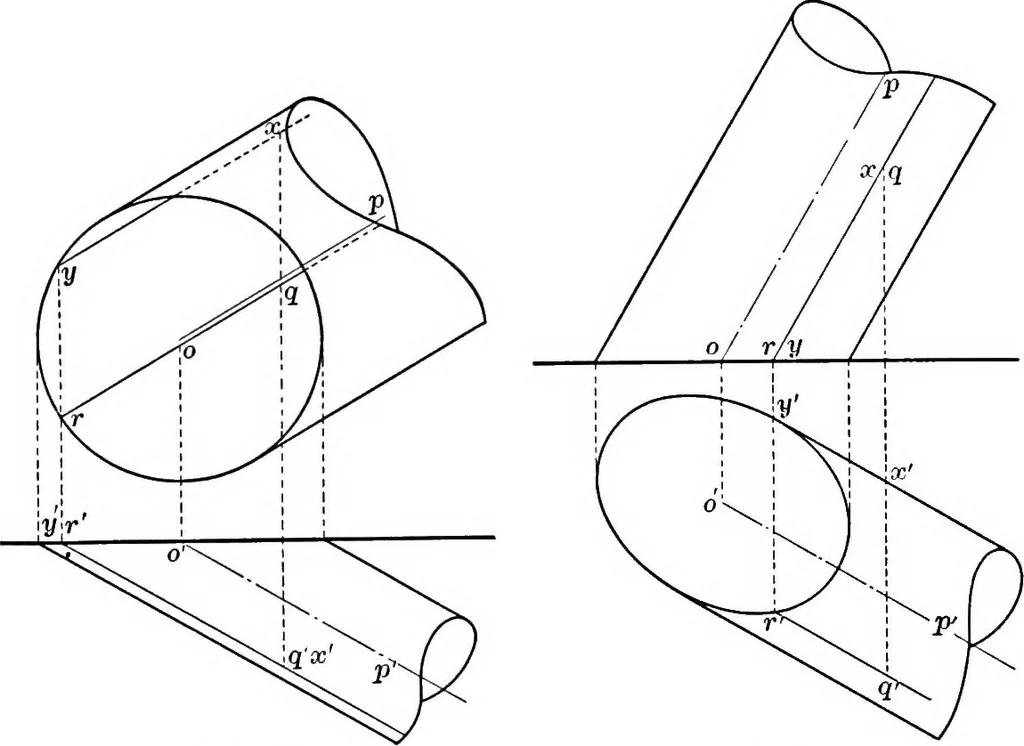

s of a cylinder whosebase is a circle in H. Assume the element XY parallel, of course, I02 ESSENTIALS OF DESCRIPTIVE GEOMETRY to the axis and piercing H in the base at Y. Any point on thiselement will be a point on the surface of the cylinder. Theelement projected at xy has two plan views, one at… … Fig. 8o. Fig. 8i. by its plan view only, two V projections would be possible, oneat q and one at x, since the element through Q has two possibleV projections. In given problems it will always be stated onwhich element to take the point. 91. Proposition 22. Given the axis and right section of…
