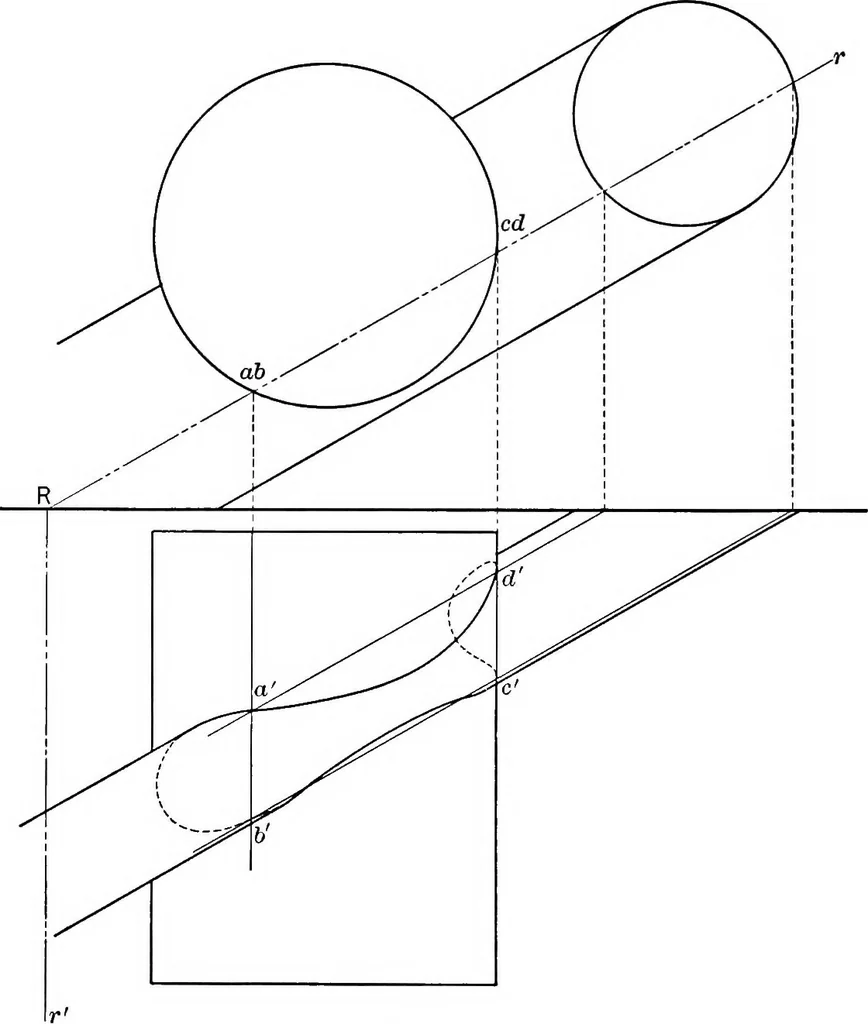

Fig. 107. 134 ESSENTIALS OF DESCRIPTIVE GEOMETRY R through both cylinders cutting elements from each. Theseelements intersect at A, B, C, and D, as shown. If enough auxil-iary planes similar to R are passed a sufficient number of pointsmay be obtained to draw a curve of intersection. … Fig. io8. Construction: Second Case. When the bases of the givencyhnders are in different planes. In Fig. 109 the larger cylinder has a circular base in H and isparallel to V; the smaller has a circular base in V and is parallelto H. Pass auxiliary planes, as S, through the cylinders parallelto the…
