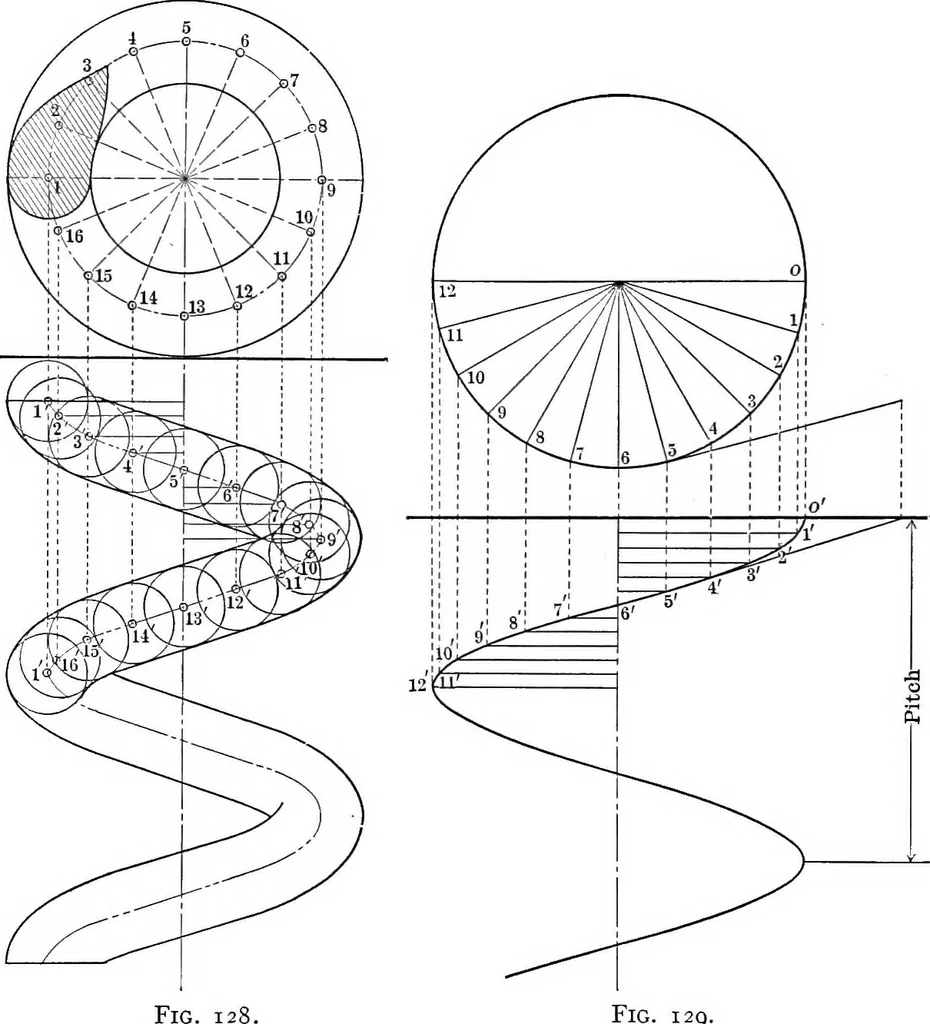

y-fourth of the pitch; i then is the elevation ofits second position. In like manner all twenty-four positionsmay be located and the curve plotted. In drawing a conical helix the same principle applies except l62 ESSENTIALS OF DESCRIPTIVE GEOMETRY that it must be remembered that the H projection… … Fig. 12 Fig. 129. shows the construction of a conical helix and the method offinding its projections. 130. To Draw a Tangent to a Helix. If in any given helix thegenerating point starts from H, as in Fig. 125, it will be foundthat the distance from any position of the point on the curveback to H…
