Thomas, Hugh Kerr · New York, McGraw-Hill Book Company, Inc.; [etc., etc.] · leaf 36

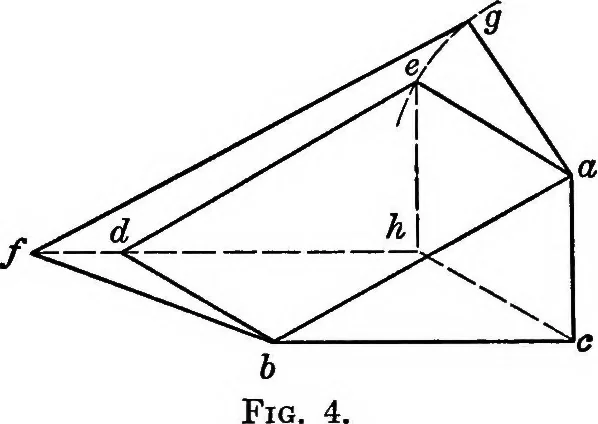

hether the worm drives the wheelor the wheel the worm; with a square thread, however, such agliding angle is only possible if the proportions of the worm aresuch that they are satisfied by the equation Td=L (18) The gear ratio and the dimensions of the worm and wheel may,and generally will, make… … working surface of the thread is shown in perspective by theplane a e db and, in a square-threaded worm, the angle a 6 c isthe gliding angle of the rubbing surfaces. As drawn, however,this angle is much less than 45 degrees and such a gear cannotbe reversible, except to a slight degree. Now suppose…
Gearing, Worm
