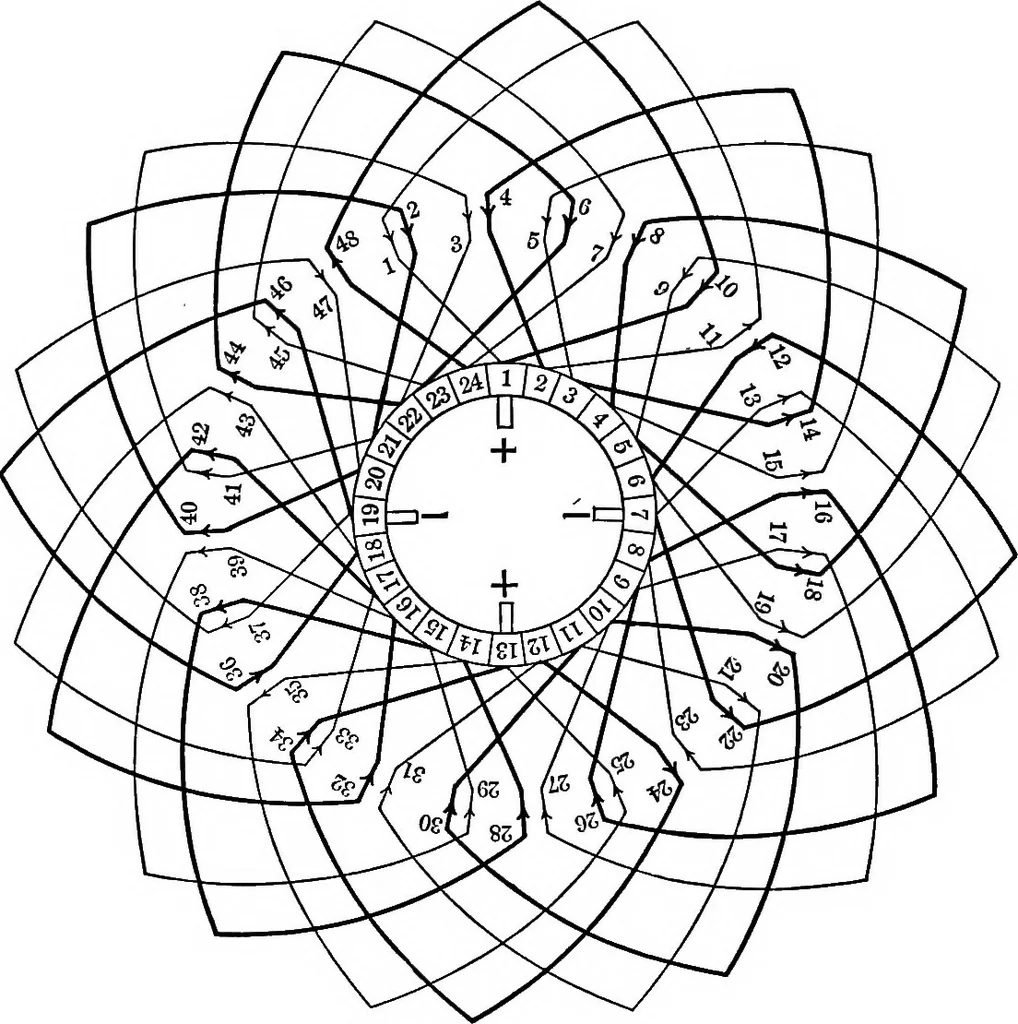

place of the end view the circulardevelopment may be used (Fig. 24). 4. Write the winding table for and draw the end view anddevelopment of the winding of a 6 pole drum with parallelgrouping of armature conductors, there being 24 bars to thecommutator. 100 ELECTEIOAL PEOBLEMS 5. Write the winding… … FlQ. 24 Suggestion. — This -will he a case of 4 layer -winding with 4 elements in each slot. Folio-wing the method described under Problem 3, -we have for hand -winding: First Layer 1 21 25 45 ^ 49 69 73 93 Etc. Second Layer Etc.Third Layer 22 42 46 66 _ 70 90 94 18 Etc. 43 63 Etc. THE WINDING OF…
