Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 132

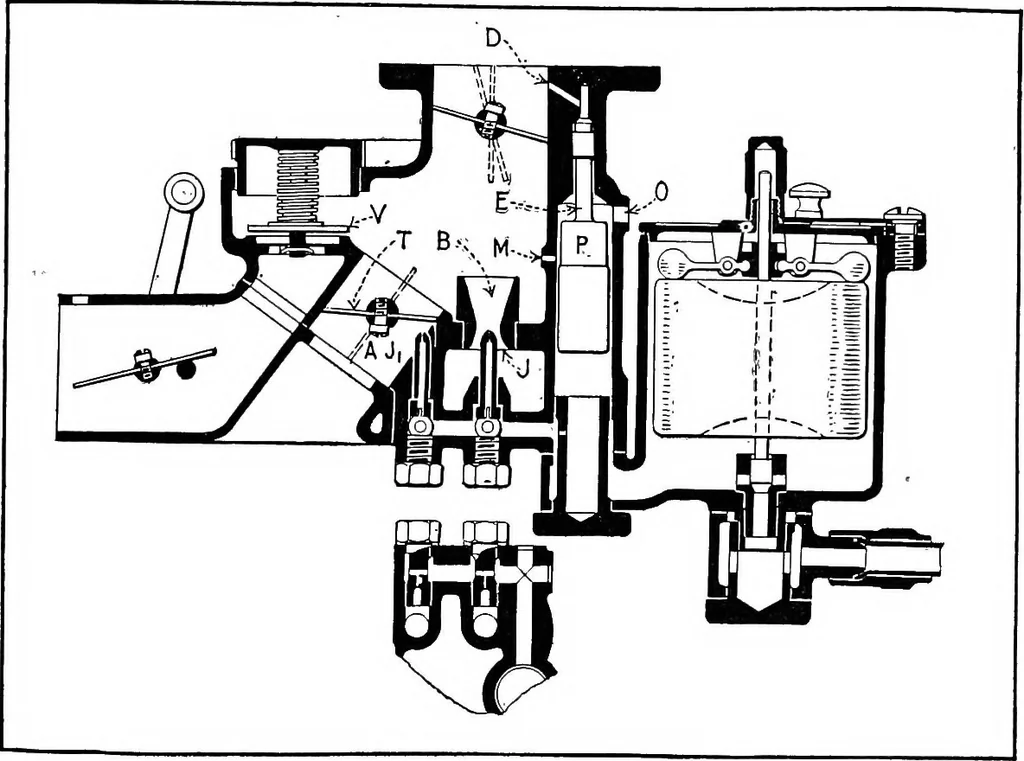

s brought into service.For instance, that supplied the primary mixing chamber Ball and Ball Two-Stage Carburetor 131 should be regulated with the throttle partly closed, whilethe auxiliary jet should be adjusted with the throttle fullyopened. BALL AND BALL TWO-STAGE CARBURETOR This is a two-stage… … Fig. 48.—The Ball and Ball Two-Stage Carburetor. is a hot-air passage with a choke-valve; the primary ven-turi appears at B; J is its gasoline jet, and V is a spring-loaded idling valve in a fixed air opening. These partsconstitute the primary system. In the secondary systemA is a cold-air passage,…
