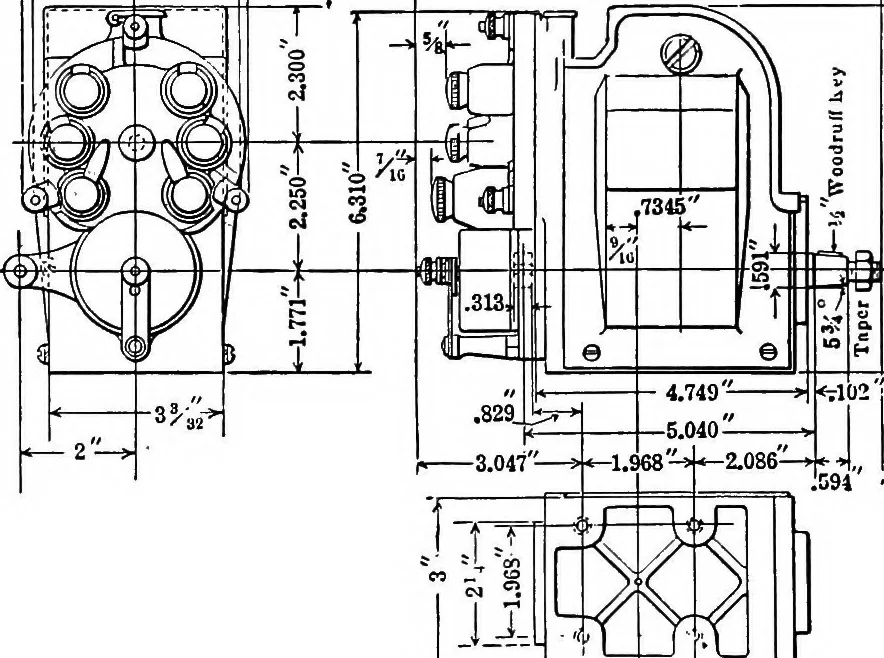

ad-justed so that the battery spark occurs about 5° later 184 Aviation Engines than the magneto spark. This provides an automaticadvance as soon as the switch is thrown to the magnetoposition MAG. This relative timing can be easilyadjusted by removing the interrupter and shifting thecam in the… … |4) • KT.P >4 DerpD S. Sld. Thread. Fig. 67.—Installation Dimensions of Dixie Model 60 Magneto. this magneto the rotating member consists of two piecesof magnetic material separated by a non-magnetic centerpiece. This member constitutes true rotating poles forthe magnet and rotates in a field…
