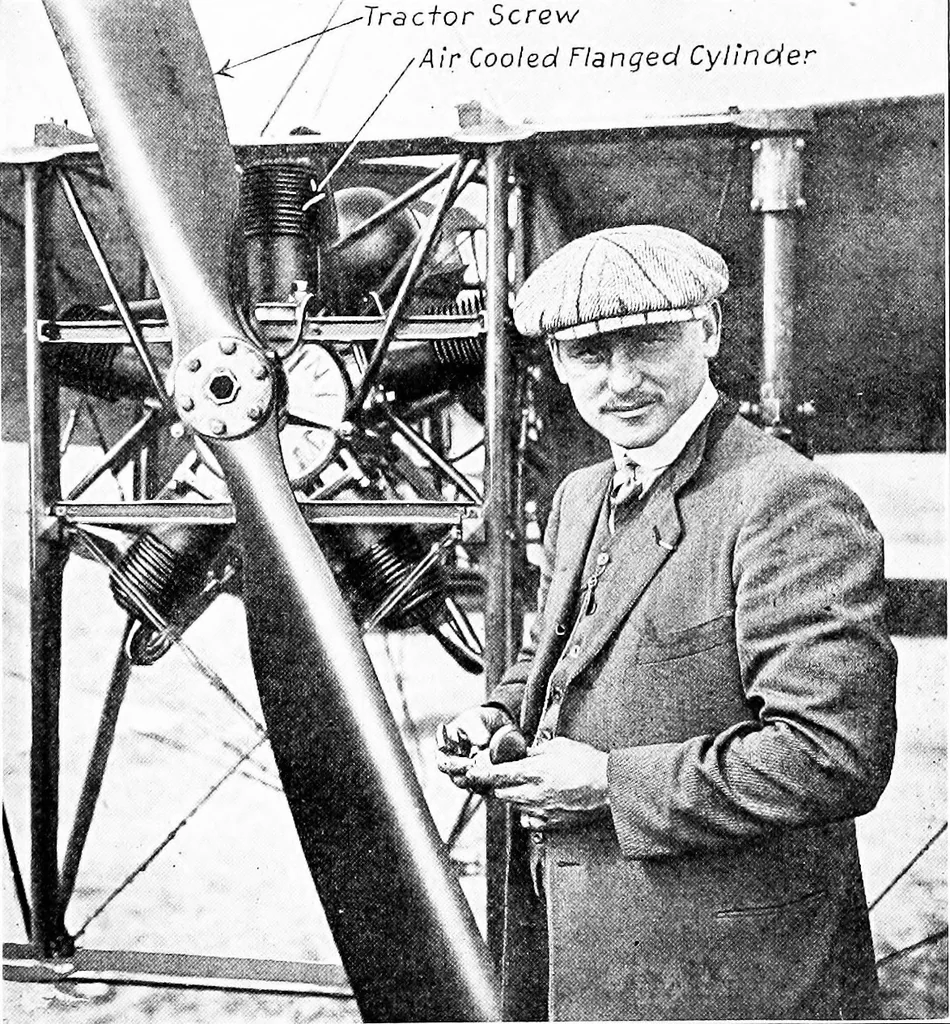

coolingeffect. AIR-COOLED ENGINE DESIGN CONSIDERATIONS There are certain considerations which must be takeninto account in designing an air-cooled engine, which areoften overlooked in those forms cooled by water. Large Air-Cooled Engines 229 valves must be provided to insure rapid expulsion ofthe… … Fig. 85.—Anzani Testing His Five-Cylinder Air Cooled Aviation MotorInstalled in Bleriot Monoplane. Note Exposure of Flanged Cylindersto Propeller Slip Stream. head, in order to eliminate any pockets or sharp passageswhich would impede the flow of gas or retain some ofthe products of combustion and…
