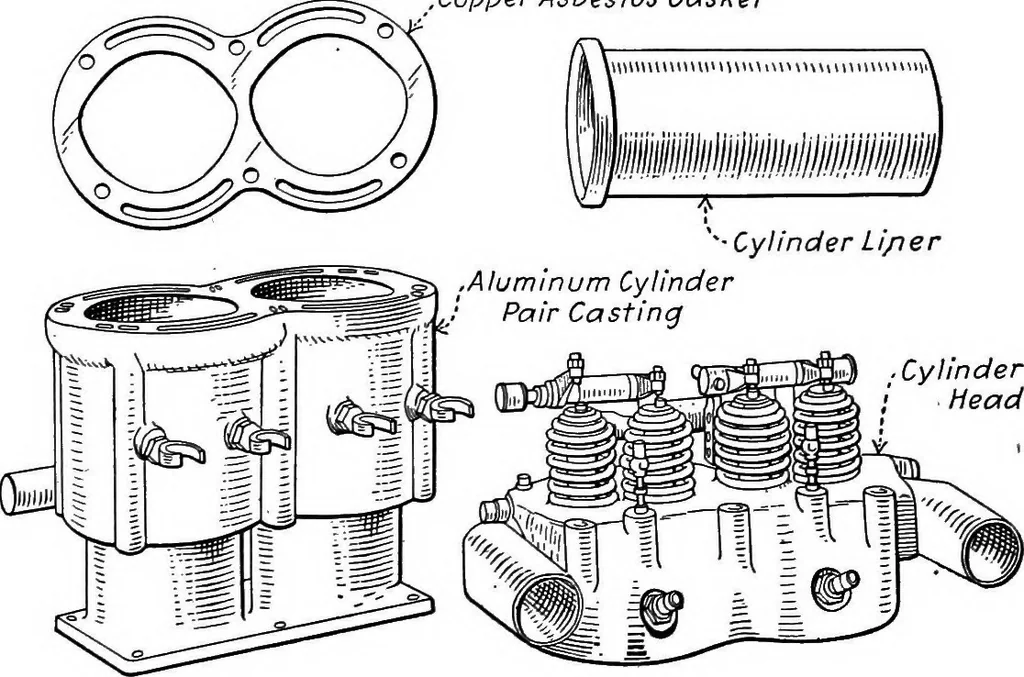

e waterto enter the cylinder jacket, the other for the coolingliquid to discharge through. 238 Aviation Engines INFLUENCE ON CRANK-SHAFT DESIGN The method of casting the cylinders has a materialinfluence on the design of the crank-shaft as will be shownin proper sequence. When four cylinders are… … Fig. 87.—Twin-Cylinder Block of Sturtevant Airplane Engine is Cast ofAluminum, and Has Removable Cylinder Head. as individual units it is thought necessary to supply afive-bearing crank-shaft, though sometimes shafts havingbut three journals are used successfully. Obviously theshafts must be…
