Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 247

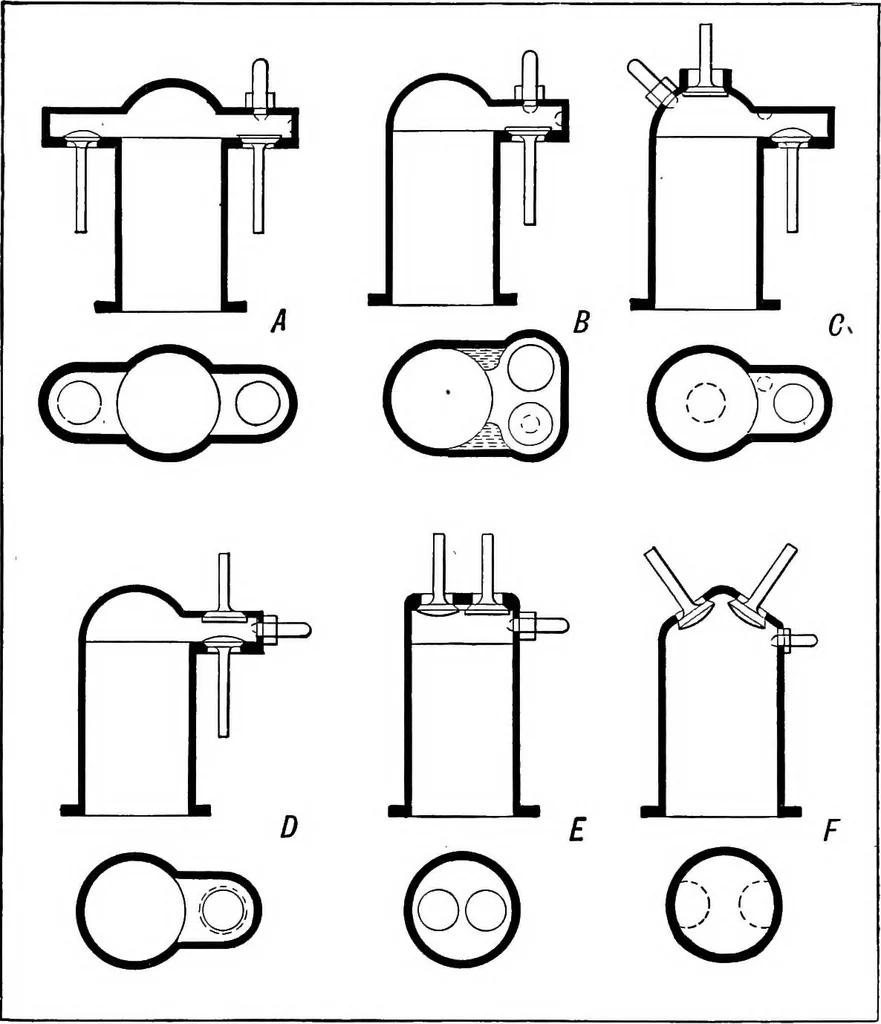

, must be under a greaterstrain than those operating at lower speeds. The valve-operating mechanism is especially susceptible to the in- 246 Aviation Engines fluence of rapid movement, and the slower the engine thelonger the parts will wear and the more reliable thevalve action. As will be seen by… … Fig. 92.—Diagram Showing Forms of Cylinder Demanded by Different Valve• Flacings. A—T Head Type, Valves on Opposite Sides. B—L HeadCylinder, Valves Side by Side. C—L Head Cylinder, One Valve in Head,Other in Pocket. D—Inlet Valve OveT Exhaust Member, Both in SidePocket. E—Valve-in-the-Head Type…
Airplanes
