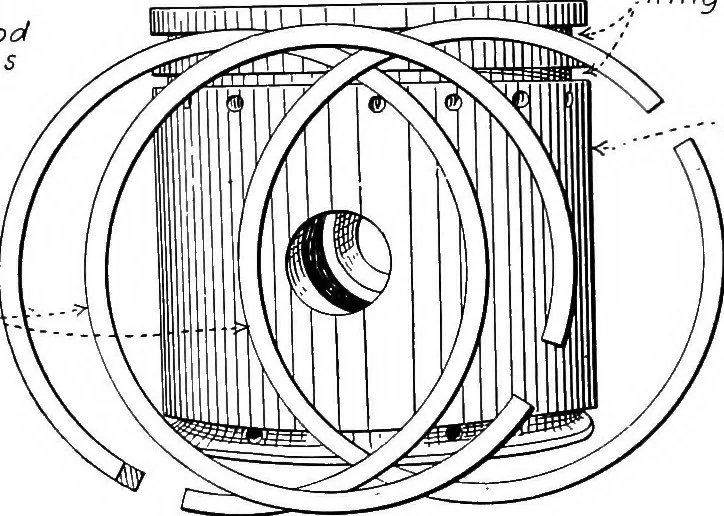

•■Connecting Rod ,A, ■ < n D , y Wrist Pin Bushing- -Ring Grooves Connecting RodBig End Boxes PistonRings—Xt … .-■■Piston Fig. 119.—Parts of Sturtevant Aviation Engine. A—Cylinder HeadShowing Valves. B—Connecting Rod. C—Piston and Rings. Constructional Details of Pistons 293 wrist pin was free to move it would work out of thebosses enough so that the end would bear against thecylinder wall. As it is usually…
