Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 492

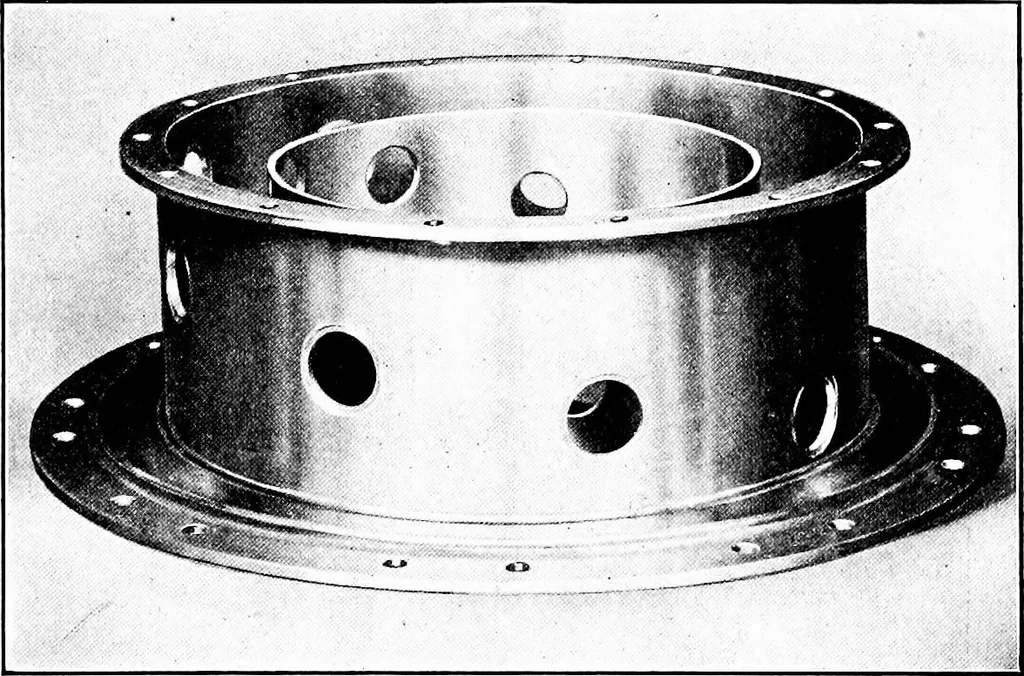

sition in the web of a gear wheel Gnome Monosoupape Engine 491 keyed to the thrust plate, which gear serves also forstarting the engine by hand. Molded in this ring of in-sulating material are nine brass contact sectors, connect-ing with contact screws at the back side of the gear,from which bare… … Fig. 212.—The Gnome Engine Cam-Gear Case, a Fine Example of Accurate Machine Work. spark-plug every time the piston in the cylinder in whichthis spark-plug is located approaches the outer deadcenter. However, on the exhaust stroke no spark is beinggenerated in the magneto, hence none is produced at…
