Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 493

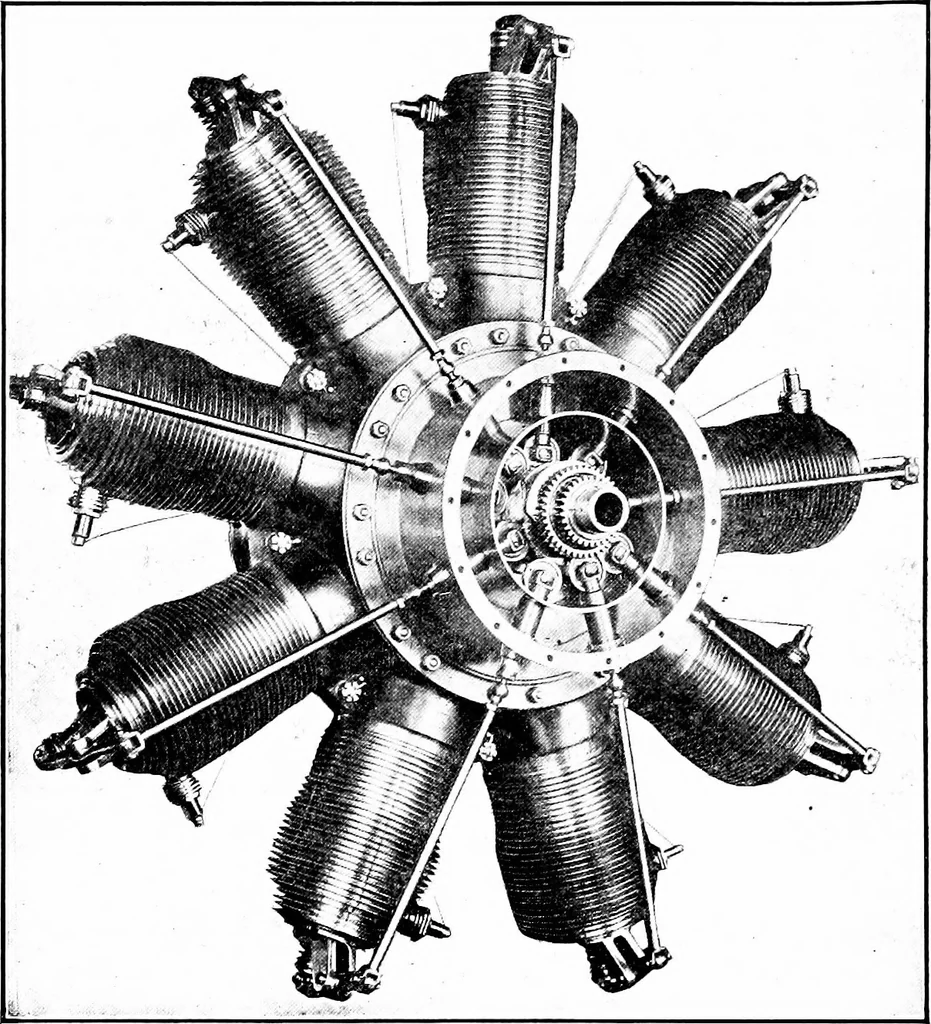

r, but for emergency purposes as in seaplanes orfor a quick get away if landing inadvertently inenemy territory, a hand starting crank is provided. Thisis supported in bearings secured to the pressed steelcarriers of the engine and is provided with a universal 492 Aviation Engines joint between the… … Fig. 213.—G. V. Gnome Monosoupape, with Cam-Case Cover Removed toShow Cams and Valve-Operating Plungers with Roller Cam Followers. with helical teeth of such hand that the starting pinionis thrown out of mesh as soon as the engine picks up itscycle. A coiled spring surrounds part of the shaft of…
