Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 506

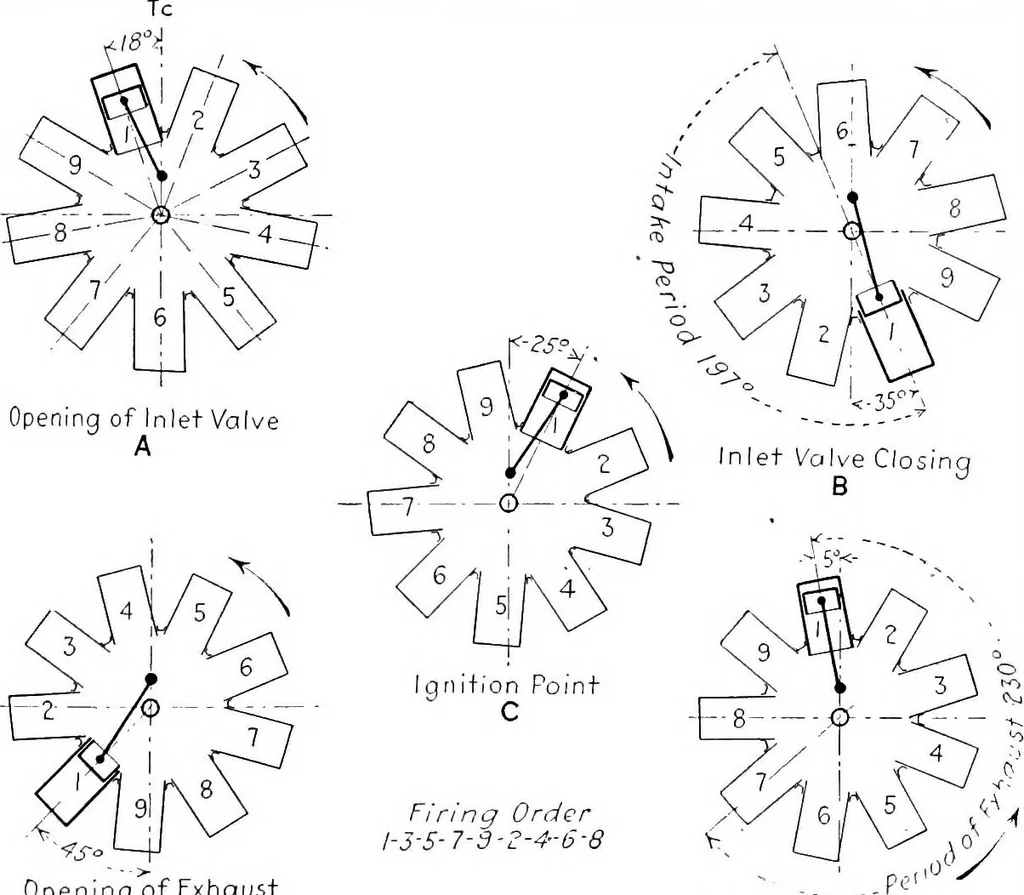

80 H. P. THE RENAULT AIR-COOLED VEE ENGINE Air-cooled stationary engines are rarely used in air-planes, but the Renault Freres of France have for severalyears manufactured a complete series of such engines ofthe general design shown at Fig. 225, ranging from a … Opening of ExhaustD Exhouot Vitlve Closinq Fig. 224.—Diagrams Showing Valve Timing of Le Rhone Aviation Engine. 506 Aviation Engines low-powered one developed eight or nine years ago andrated at 40 and 50 horse-power, to later eight-cylinder .—/7/r Stove Z}-i-~-sExhaustPipes /■Supporting Tube…
