Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 531

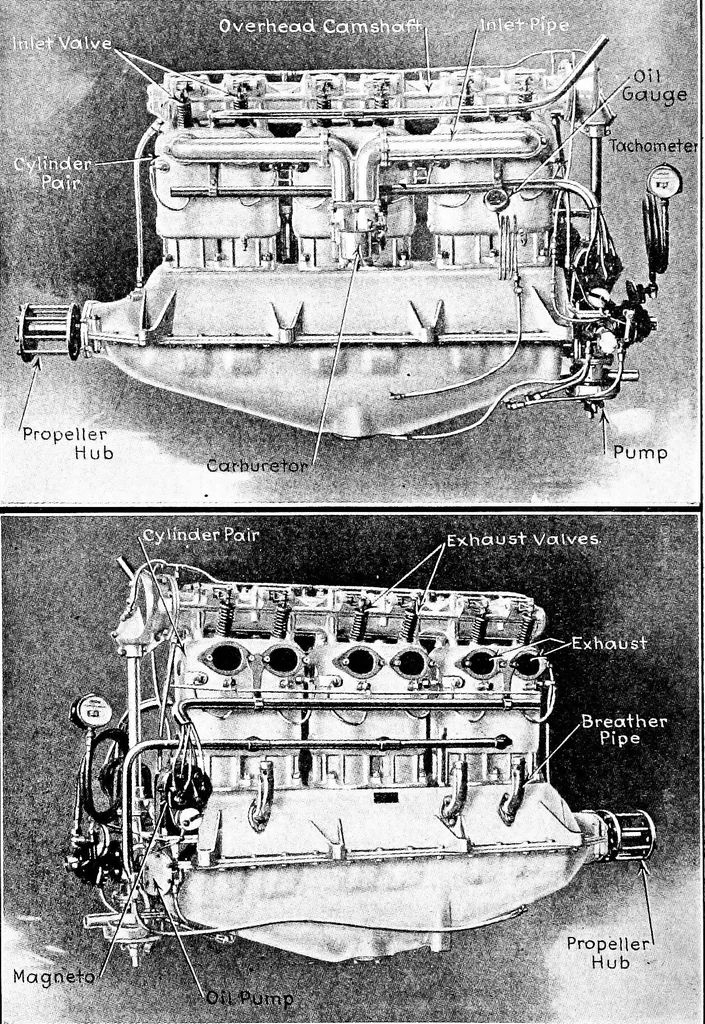

le and easilyreplaced. The main bearings of the crank-shaft areprovided with a single groove to take oil under pressurefrom pressure tube which is cast integral with case.Connecting rod bearings are of the same type. Thegudgeon pin is hardened, ground and secured in con-necting rod, and is allowed… … Fig. 237.—The Wisconsin Aviation Engine, at Top, as Viewed fromCarburetor Side. Below, the Exhaust Side. Wisconsin Aviation Engine 531 The bearings of cam-shaft are of bronze. Magneto, twohigh-tension Bosch D. U. 6. The intake manifold forcarburetors are aluminum castings and are so designedthat…
