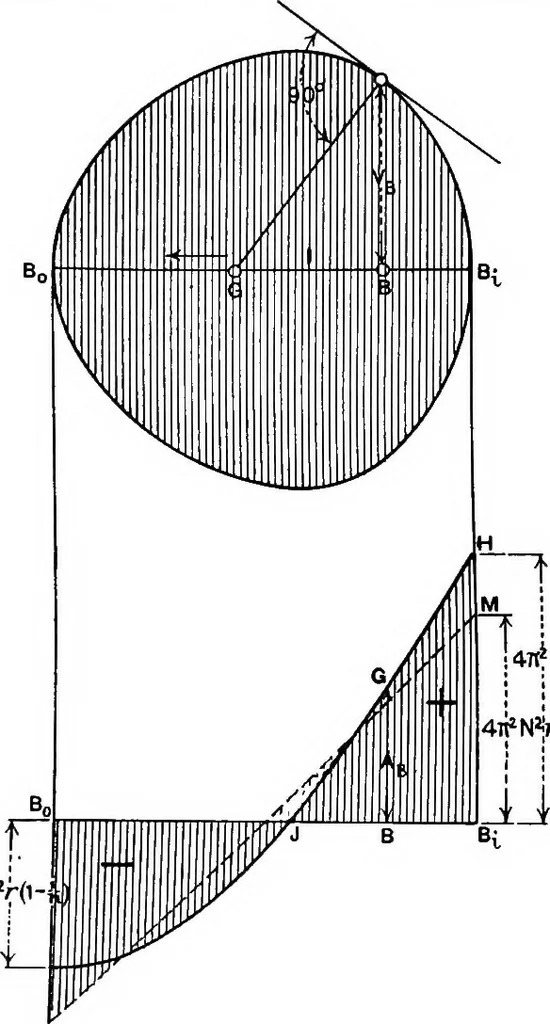

124 GRAPHIC DYNAMICS angles to it; then BG, the subnormal, should give the ac-celeration to a scale 1 in. = —, where 1 in. = z ft. per sec. is y the velocity scale, and \\n. = y ft. the space Scale. To obtain the resultant effort, generally called in this case 4n«NV(i … i4lt^N«r Fig. 69.—Velocity and Acceleration Diagrams for Piston. the inertia force, we multiply the acceleration in feet per sec. Wper sec. by ^^ , where W is the weight of the reciprocating parts. We have also shown that the area of the curve ofresultant effort between two points gives us the…
