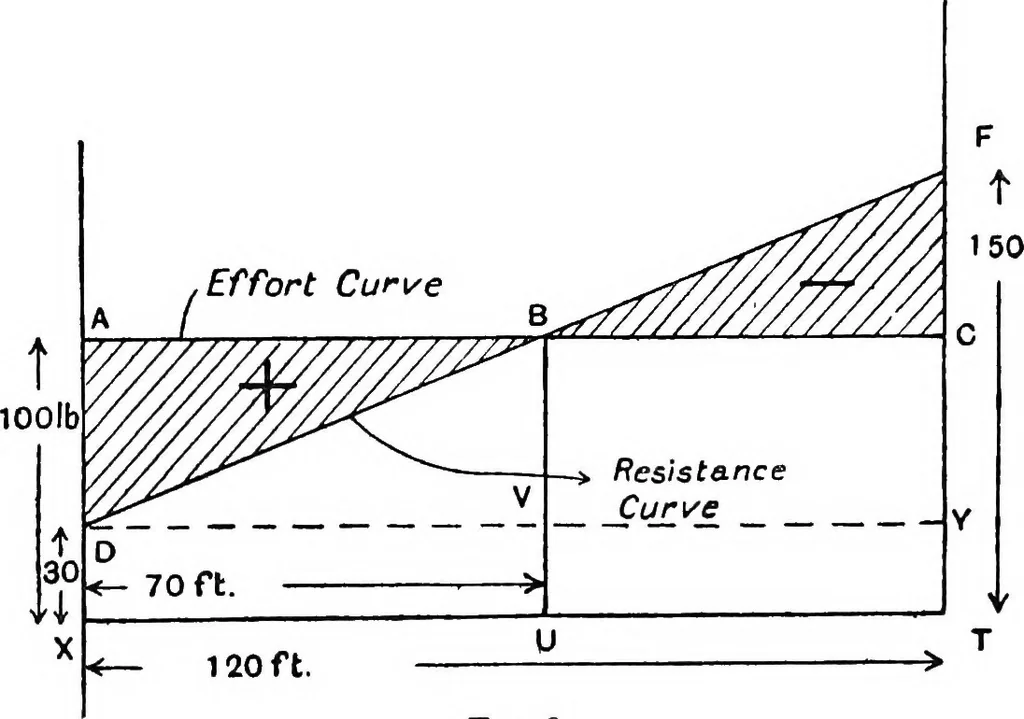

against a resistance, we firstdraw the efEort curve (which for distinction we may callthe gross effort curve) and the resistance curve to the samescale on the same base ; we then plot the difference betweenthese two curves, giving the resultant efEort curve as shownin Fig. 7, and then draw the sum… … Fio. 8. NTTivrF.-R.TnAT. Esampm; of Effort and Resistance.—4body is being urged forward by a constant force equal to 100 lb.,and over a distance of 120 ft. the resistance increases uniformlyfrom 30 lb. to 150 lb. At what point will the body move withthe greatest velocity ? How much kinetic energy…
