Elements of graphic dynamics; an elementary textbook for students of mechanics and engineering (1919)
Andrews, Ewart S. (Ewart Sigmund) · London, Chapman and Hall, Ltd. · leaf 51

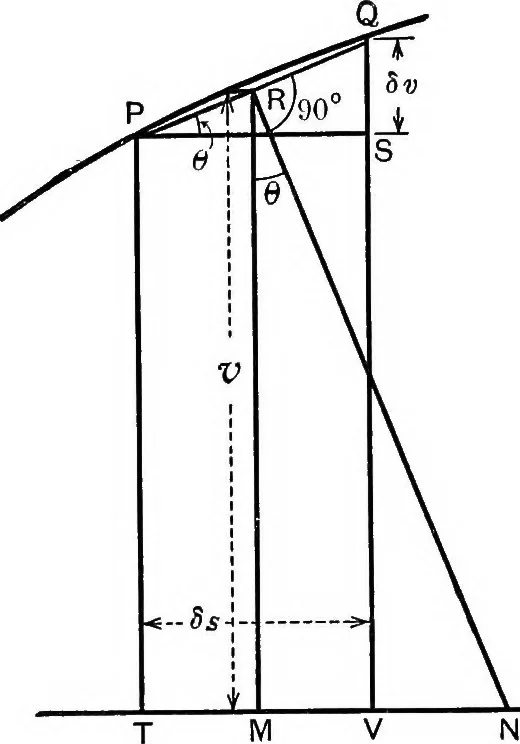

in the ratio —=.W If, for instance, the curve of resultant effort is to scale1 = 1,000 lb. (1 kip), and the weight of the body is 2,000 lb.(2 kips), the acceleration scale would be 1,000 X 32-2 ^^g.^2,000 Now let P, Q, Eig. 22, be two points very near to eachother on the curve of action, so near,…
Mechanics, Applied · Dynamics · Graphic methods
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
