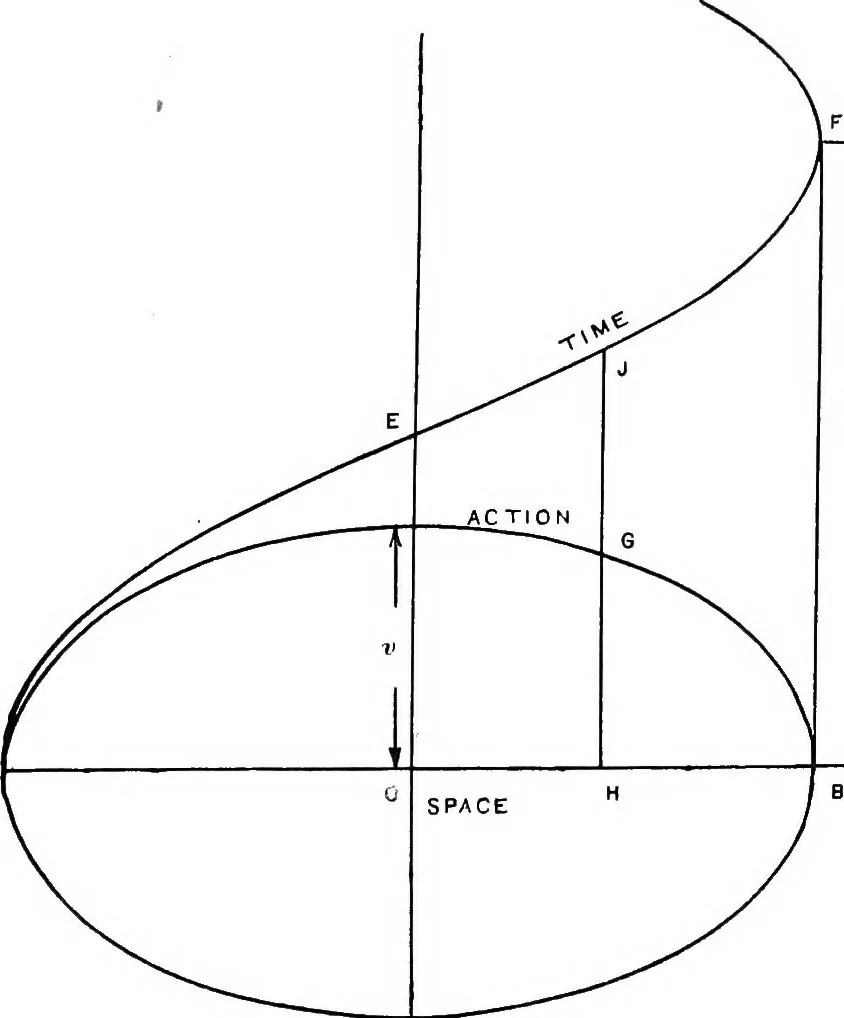

will be 1 in. = -r^ = 2-5 sees. 40 Application to Simple Harmonic Motion.—Now con-sider the application of the inverse sum curve constructionto the determination of the space curve upon a time base CURVES OF ACTION 53 in the case of simple harmonic motion, for which we haveshown, Fig. 25, that the… … Fig. 28.—Inverse Sum Curve in case of Simple Harmonic Motion. along A B the curve continues indefinitely by repeating theundulations.If drawn very carefully, the time B F will be found to be ; this can be proved mathematically, and we have shown that« = A 0 \/ ^^ 54 GRAPHIC DYNAMICS Calling this…
