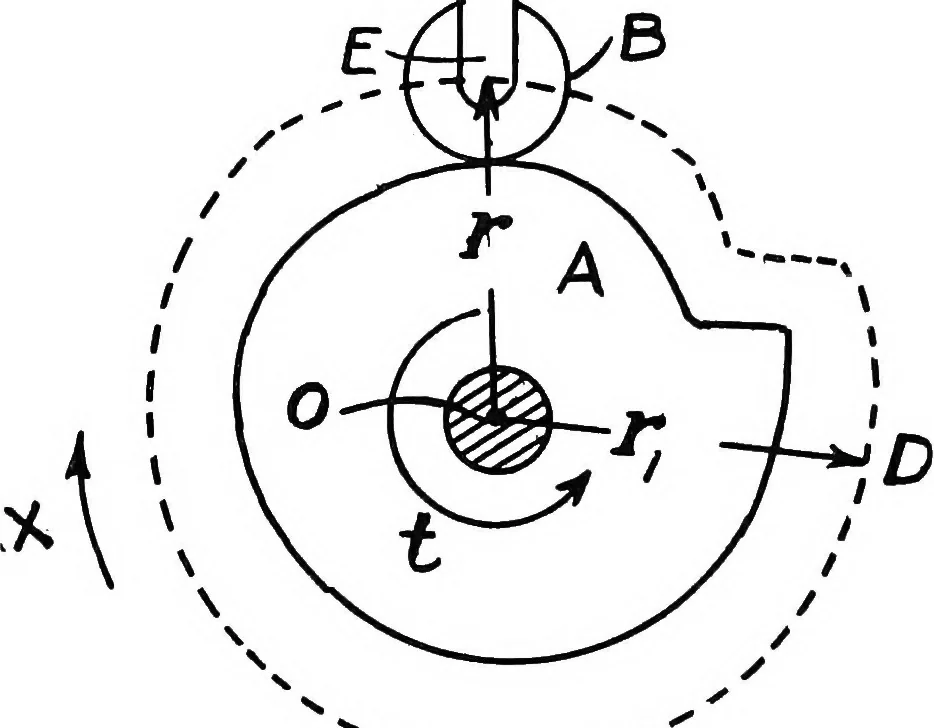

with the origin is the origin, i.e. the polar slopecurve becomes a point. This will be seen quite clearlyfrom the case of space and velocity diagrams. If the polarspace curve is a circle, the body remains at the same distancefrom the origin, i.e. the body is stationary ; the velocity, CAMS 75… … Fig. 39. to the design of cams. We wiU restrict the term cam to a shaped body A, Fig. 39, which rotates uniformly, andupon its periphery acts upon a body C, usuaUy provided 76 GRAPHIC DYNAMICS with an anti-friction roller B, the function of the cam beingto transmit a variable (and usually…
