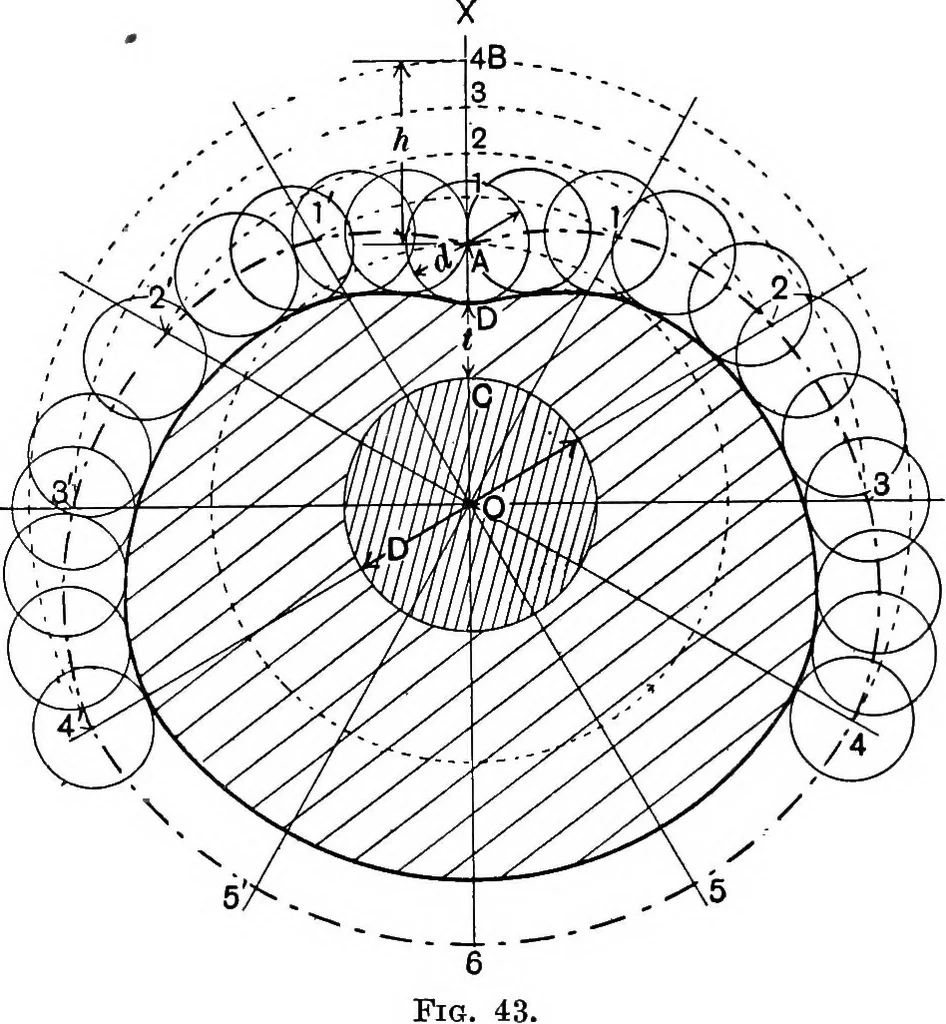

stance; if we take^ = — or a multiple thereof, the scale of acceleration will TT be a convenient one. 82 GRAPiHIC DYNAMICS In applying this construction to the determination ofa number of points to get the polar effort curve, a circle canbe drawn with centre 0 and radius p, and all the… … The cam is required to move the slide uniformly upwardthrough a height h during one-third of a revolution, thento remain stationary for another third of a revolution, andfinally to fall uniformly during the remainder of the revolu-tion. First draw with centre 0 a circle of diameter D, Fig. 43,to…
