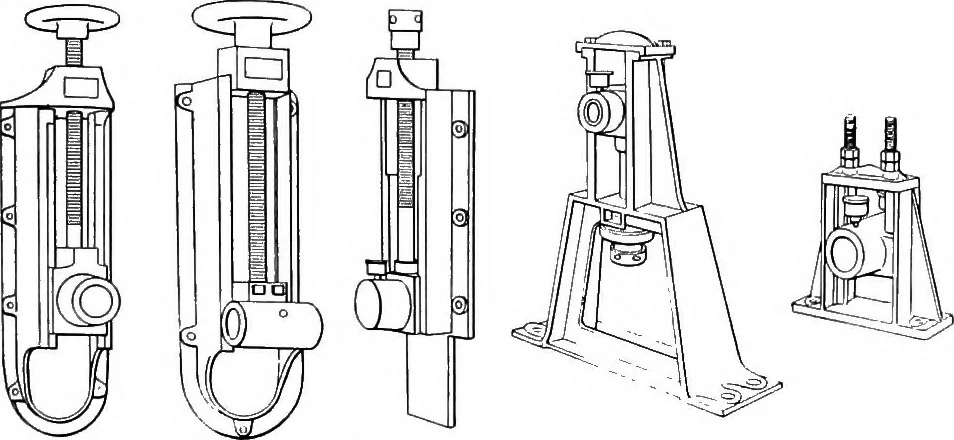

s the escape of material from the elevator nomatter in what position the box is set. Occasionally theouter end of the box is itself closed as a protection to thebearing. Floor stand take-ups (Figs. 178 and 179) are used atthe head ends of some types of elevators. The supportingframes are arranged… … Figs. 175, 176, 177, 178 and 179 adjustment being vertical. The screws may be arranged tobe either in tension or compression. The simple take-up (Fig. 180) has a box guided by asingle tongue and groove joint. It is suitable only foruse on the lighter types of conveyors. Either cast iron (Fig. 181)…
