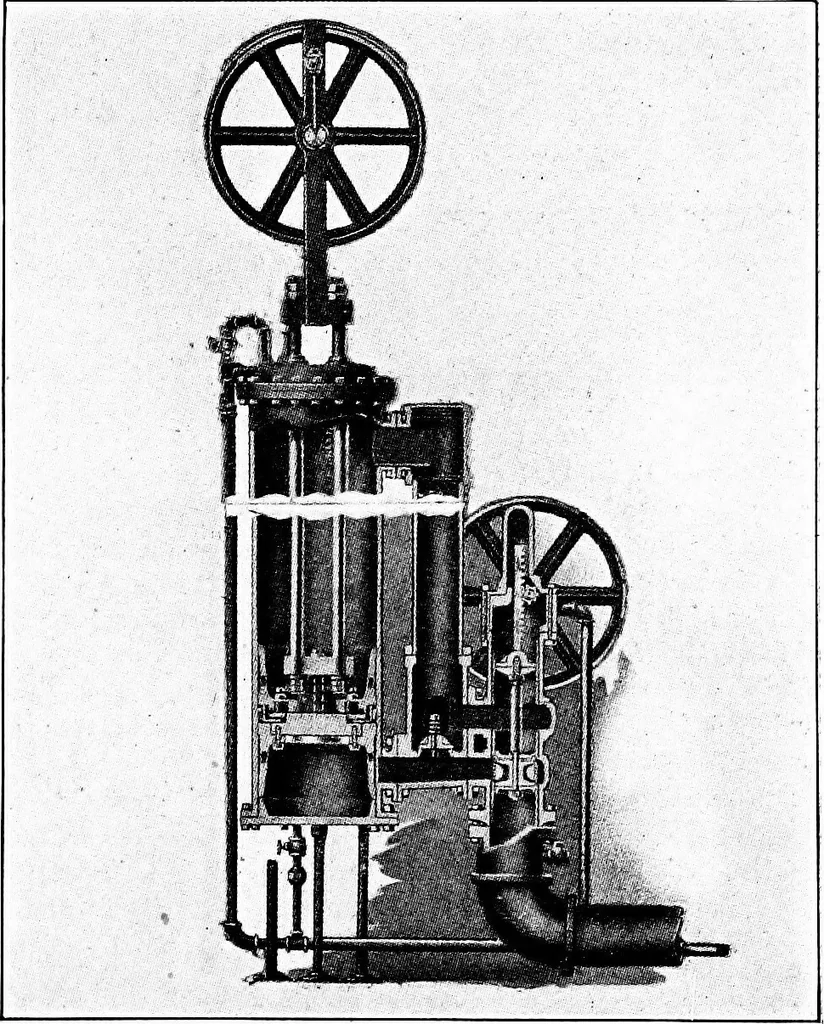

e pistonrods are secured by a suitable yoke and frame to thetraveling sheaves about the cylinder. The upper and lowerends of the cylinder are connected by a circulating pipethe function of which will be shown. A suitable valve,which is operated by a shipper sheave, controls the flowof water to and… … Vertical Hydraulic Elevator Engine The travel of the car with respect to the piston travelmay be any desired ratio. This is accomplished by aprinciple substantially the same as a block-and-fall. Thecylinder may be made a convenient length. For a two-to-one gear, i. e., a car travel of two feet to…
Hoisting machinery · Conveying machinery
