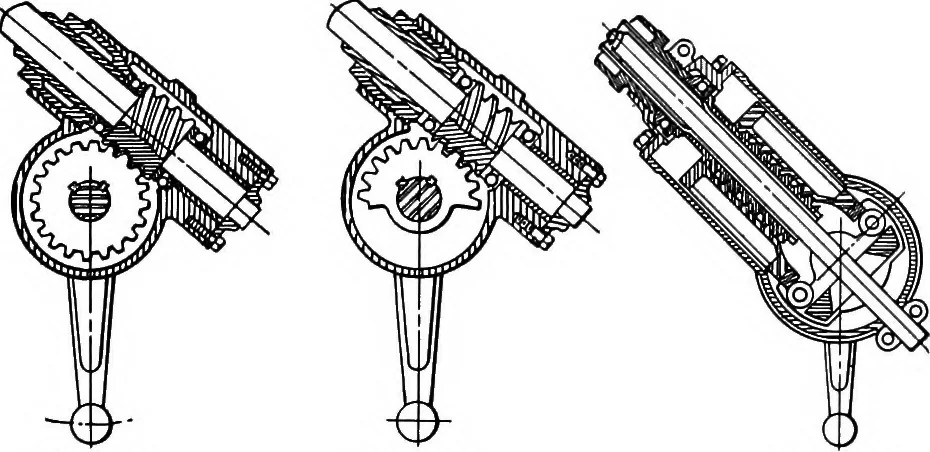

nd-wheel (and worm) and the shape of the teeth on theworm and worm wheel are such as to make the steeringnearly non-reversible—that is, road shocks on the frontwheels are not transmitted through the steering gear tothe handwheel. (S) The worm and split nut type of steering gearconsists… … Fig. 21 Fig. 22 Fig. 23 Fig. 21—Worm and Gear; Fig. 22—Worm and Sector; Fig. 23—Worm and Split Nut thread cut on its inner face; the other nut has a left handthread. Rotating the worm shaft, which is held against end-wise movement by the handwheel, causes one nut to moveaway from the handwheel, the…
