Material handling cyclopedia; a reference book covering definitions, descriptions, illustrations and methods of use of material handling machines employed in industry (1921)
Wright, Roydon Vincent, 1876- ed, Little, John G., joint ed, Augur, Robert C., joint ed · New York, N.Y., Simmons-Boardman Publishing Co · leaf 611

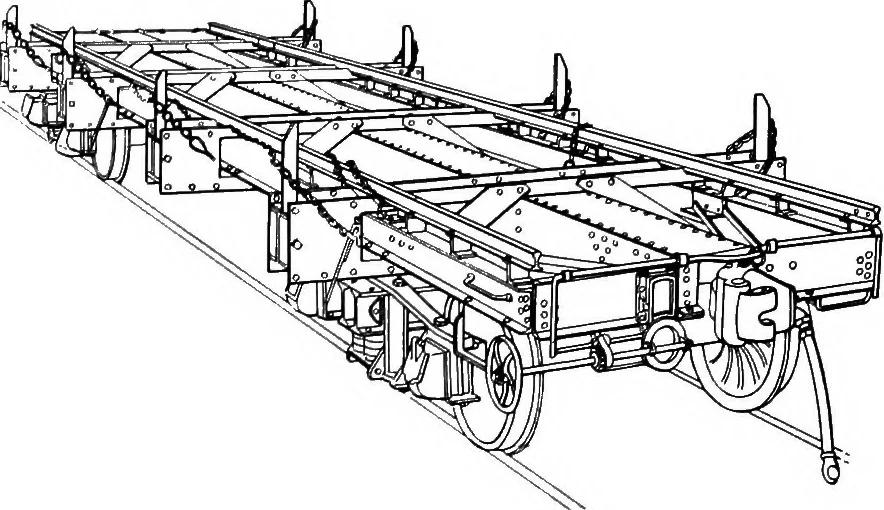

Fig. 38—Logging Car, Wooden Frame on other railroads. Cars of the same general type are builtin capacities up to 80,000 lb. For hauling long logs, the center sills are cut in two atthe center and reinforced with straps so that the distancebetween the truck centers can be adjusted to suit the… … Fig. 39—Logging Car, AH Steel the type which run over the tops of the cars are not usedthe rails may be omitted. The use of four bunks permits of the loading of two tiersof short logs, but if only long logs are to be hauled the carsneed only be equipped with two bunks. The bunks shown are equipped…
Hoisting machinery · Conveying machinery
