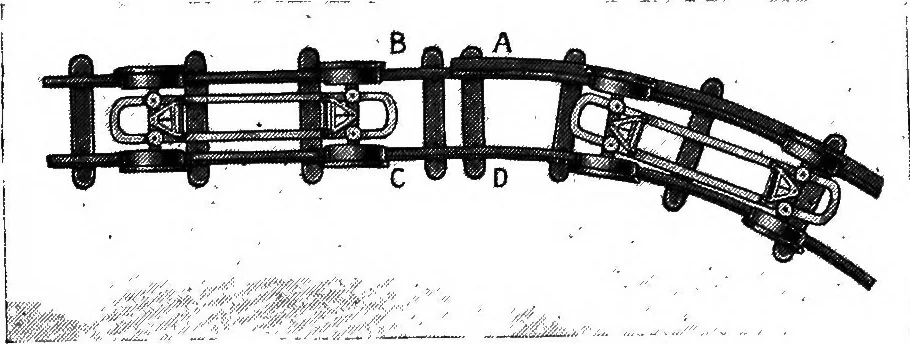

The standard gauge of thej tracks is 21i^ inches measuredI from outside to outside of raili heads, loaded cars of standardi width require a passage of only4 ft. clearance. The track sec-tions, switches, frogs, cross-overs, etc., are shipped inunits assembled with the ties, and all ready to lay.An… … Hunt Flexible Wteel Base on Curve. The action of the axles and wheel flanges on Huntcars in rounding curves is illustrated above. As thecar on a straight track approaches the curve, the wheelB runs on its flange on the special outer curve rail Aand the wheel C runs on its tread on the inner rail…
